STM32 USB Mass Storage Class: Use W25Q NOR Flash as an External Drive

This is Part 5 of the STM32 USB series. In Part 4, we used the USB Mass Storage Class with an SD card connected over SDIO, and the SD card appeared as a removable drive on the computer. This time, we are going to do the same thing, but with a W25Q SPI NOR Flash module instead.

The Mass Storage Class does not care what kind of storage is behind it. As long as we implement the read, write, and capacity functions correctly, the host computer treats it as an external drive. So in this tutorial, we swap the SD card out and bring in the W25Q Flash module connected over SPI.

In this tutorial, we will configure SPI1, integrate the W25Q library, test the Flash memory independently, and then implement the usbd_storage_if.c functions to expose it as a USB drive.

You can follow the other parts of this series here:

STM32 USB Mass Storage Class: Use W25Q NOR Flash as an External Drive

Table Of Contents

How W25Q Flash Works with USB MSC
Wiring and Connections
CubeMX Setup for USB MSC and SPI
W25Q Library Setup and Testing
STM32 USB MSC: Code and Results
STM32 USB MSC W25Q — FAQs

How W25Q Flash Works with USB MSC

Before writing any code, it helps to understand the two key pieces involved here — the W25Q Flash memory and how the USB Mass Storage Class sits on top of it.

W25Q NOR Flash Memory

The W25Q series from Winbond is a family of SPI NOR Flash chips. They come in different sizes of 8 Mbit, 16 Mbit, 32 Mbit, and so on. The W25Q16JV used in this project is 16 Mbit, which is 2 MB.

There are a few things about NOR Flash that are important to understand before using it as a storage medium:

Page size is 256 bytes. You can only write up to 256 bytes at a time. Writing more than that in a single operation causes the data to wrap around and overwrite from the beginning of the same page.
Sector size is 4 KB. Before writing, you must erase the sector first. Flash memory cannot overwrite existing data. It can only change bits from 1 to 0, and erase resets everything back to 1.
It is non-volatile. Data is retained even after power is removed, unlike RAM.

The USB Mass Storage Class Bridge

The USB Mass Storage Class (MSC) makes the STM32 appear to the host as a block storage device. The host sends standard SCSI commands like “what is your capacity”, “read block 50”, or “write block 100”. The STM32 translates those into actual read/write operations on the W25Q Flash.

CubeMX generates a file called usbd_storage_if.c. This file is the bridge between the USB stack and the storage. It has six functions we need to implement:

Function	Purpose
`STORAGE_Init_FS`	Initialize the storage medium
`STORAGE_GetCapacity_FS`	Report block count and block size
`STORAGE_IsReady_FS`	Check if storage is ready
`STORAGE_IsWriteProtected_FS`	Tell the host if writes are allowed
`STORAGE_Read_FS`	Read one or more blocks
`STORAGE_Write_FS`	Write one or more blocks

Why Block Size is 4096 Bytes Here

In the previous project with the SD card, we used a block size of 512 bytes, because that is the native sector size of SD cards. For the W25Q Flash, the native sector size is 4096 bytes (4 KB). We configure the media packet size in CubeMX to match this, so the host reads or writes exactly one sector at a time. This also means we only need one erase operation per write cycle, which simplifies the write function significantly.

Wiring and Connections

The W25Q Flash module connects to the STM32 over SPI. We also have a USB-to-TTL module for serial logging. Here is the full connection summary.

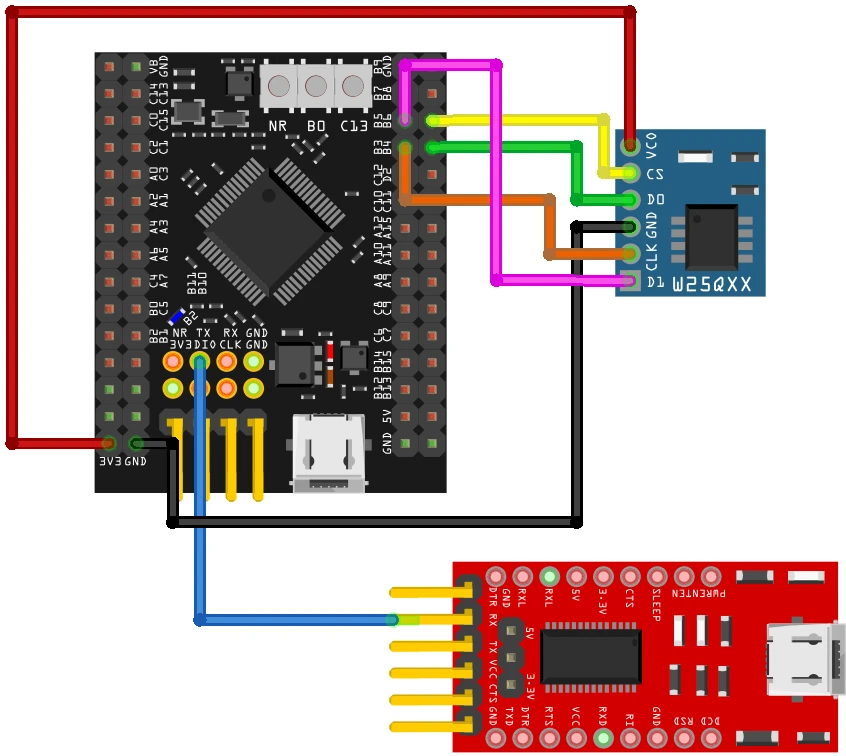

STM32F446RE connected to W25Q16JV SPI NOR Flash module and USB-to-TTL adapter — connection diagram

W25Q Pin	STM32 Pin	Function
CLK	PB3	SPI1 Clock
DO (Data Out)	PB4	SPI1 MISO
DI (Data In)	PB5	SPI1 MOSI
CS	PB6	GPIO Output (Chip Select)
VCC	3.3V	Power
GND	GND	Ground

The USB data lines (PA11 and PA12) are assigned automatically by CubeMX when USB OTG FS is enabled. The USB-to-TTL module connects to the USART1 TX pin for serial log output.

CubeMX Setup for USB MSC and SPI

Let’s go through the full CubeMX configuration for this project.

USB Peripheral Configuration

The first thing we need to do is enable the USB peripheral. Locate and enable the USB Device (FS) or USB OTG FS peripheral, depending on your board. Make sure to choose Device Only mode, since we are using STM32 as a USB device connected to a PC. Once you do this, CubeMX automatically assigns PA11 and PA12 as the USB D− and D+ lines.

STM32CubeMX USB OTG FS configuration in Device Only mode with PA11 and PA12 assigned as USB data pins

Note that all the parameters, low power mode, VBUS sensing, SOF output are disabled for a basic setup. We are using USB FS, this runs at Full Speed (12 Mbit/s).

Now go to the Middleware section and set the USB Device class to Mass Storage Class (MSC). Under the MSC parameters, set the media packet buffer size to 4096.

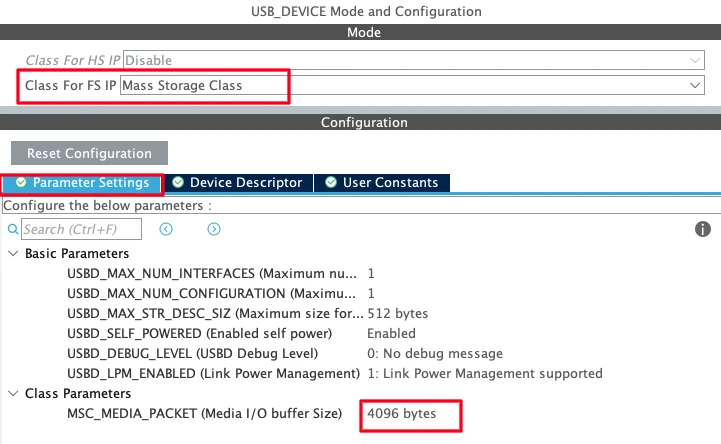

STM32CubeMX USB Mass Storage Class middleware configuration with media packet buffer size set to 4096 bytes

A few parameters worth noting:

Max number of configurations: Keep this at 1. Multiple configurations are used in composite device scenarios.
Max number of interfaces: Keep this at 1 for now. In later tutorials we will add composite interfaces.
USB self-powered: Set to enabled, since the board has its own power supply and does not draw operating power from the USB bus.

Clock Configuration

Next, we need to configure the clock. Enable the external high-speed oscillator (HSE) using the onboard 8 MHz crystal, and use the PLL to scale the system clock up to 180 MHz. We also need to make sure the USB peripheral receives exactly 48 MHz, so adjust the PLL multipliers and dividers accordingly.

STM32CubeMX clock tree showing 48 MHz to USB peripheral and 180 MHz system clock configuration

UART Configuration

Enable UART1 in asynchronous mode with default settings. We will use this for logging via a USB-to-TTL adapter. The TX pin is PA9 and the RX pin is PA10.

STM32CubeMX UART1 asynchronous mode configuration with PA9 TX and PA10 RX pins for serial logging

Connect the STM32 TX pin to the RX pin of your USB-to-TTL module.

STM32 UART TX pin connected to USB-to-TTL adapter RX pin for serial console logging

SPI Peripheral Configuration

Enable SPI1 in Full-Duplex Master mode. By default, CubeMX assigns PA5, PA6, and PA7 as the SPI1 pins. We need to remap them to PB3, PB4, and PB5 to match the connection diagram.

PB3 → SPI1_SCK (Clock)
PB4 → SPI1_MISO (Data Out from module)
PB5 → SPI1_MOSI (Data In to module)
PB6 → GPIO_Output, user label: CS

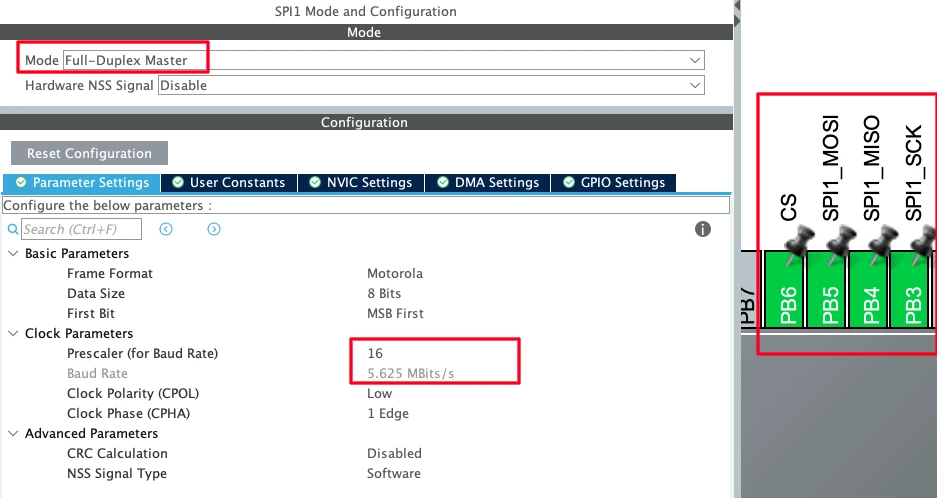

STM32CubeMX SPI1 configured in Full-Duplex Master mode with PB3 SCK, PB4 MISO, PB5 MOSI, and PB6 as GPIO Chip Select

In the SPI1 parameter settings, configure the following:

Data Size: 8 bits
First Bit: MSB First
Prescaler: set so the baud rate is approximately 5 Mbit/s (can be increased if needed)
Clock Polarity (CPOL): Low
Clock Phase (CPHA): 1 Edge

GPIO Configuration

In the GPIO settings for PB6, set the default output level to High. This keeps the Chip Select line Unselected when the program starts. Also set the output speed to Very High, as the CS pin needs to toggle quickly during SPI transfers.

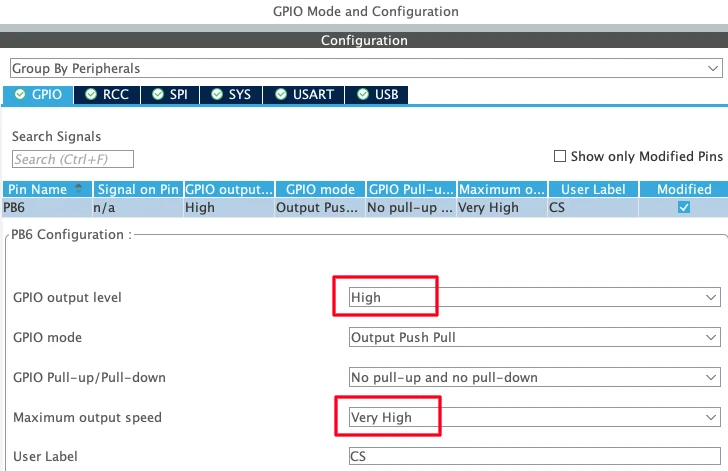

STM32CubeMX GPIO configuration for PB6 — output level set to High, speed set to Very High for Chip Select pin

W25Q Library Setup and Testing

The W25Q library is included in the downloadable project. Copy W25Qxx.c into the Core/Src directory and W25Qxx.h into the Core/Inc directory.

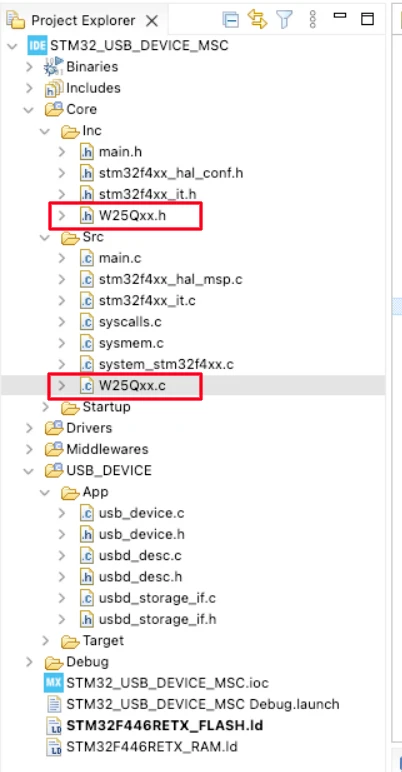

W25Qxx.c and W25Qxx.h library files added to STM32CubeIDE project — Core/Src and Core/Inc directories

The header file defines the page size (256 bytes) and sector size (4096 bytes). These are the same across all W25Q chips, so no changes are needed there.

The source file has two definitions to check:

#define W25Q_CHIP_SIZE   16     // Size in Megabits — change this for your chip
#define W25Q_SPI         hspi1  // SPI instance — change if using SPI2 or SPI3

#define W25Q_CHIP_SIZE   16     // Size in Megabits — change this for your chip
#define W25Q_SPI         hspi1  // SPI instance — change if using SPI2 or SPI3

For the W25Q16JV used here, the chip size is 16. If you are using a different chip, set this to the correct megabit value. The rest of the library calculations depend on this.

The library provides four functions we will use throughout this project:

Function	Description
`W25Q_ReadID()`	Returns the manufacturer and device ID
`W25Q_EraseSector(sector)`	Erases the specified sector (4 KB)
`W25Q_ReadBytes(addr, buf, len)`	Reads `len` bytes starting from `addr`
`W25Q_WriteBytes(addr, buf, len)`	Writes up to 256 bytes starting from `addr`

Setting up Serial Logging

Before touching anything USB-related, we verify the serial logging works. This is important because we will rely on it heavily to debug what is happening on the storage side.

Add a custom _write function to redirect printf output through UART1:

#include "stdio.h"

int _write(int fd, unsigned char *buf, int len) {
  if (fd == 1 || fd == 2) {                     // stdout or stderr ?
    HAL_UART_Transmit(&huart1, buf, len, 999);  // Print to the UART
  }
  return len;
}

#include "stdio.h"

int _write(int fd, unsigned char *buf, int len) {
  if (fd == 1 || fd == 2) {                     // stdout or stderr ?
    HAL_UART_Transmit(&huart1, buf, len, 999);  // Print to the UART
  }
  return len;
}

If you are using a different UART, change huart1 to the correct handle. This function is all that is needed, any printf call after this will send its output through the UART to your serial console.

Testing the W25Q Module

Before touching the USB code, let’s confirm the W25Q module is working. Include the header in main.c and add the following test code inside main(), before the while loop:

#include "W25Qxx.h"

// Inside main(), before while(1):
uint8_t Tx[256];
uint8_t Rx[256];

for (int i = 0; i < 256; i++) {
    Tx[i] = i;
}
memset(Rx, 0, 256);

uint32_t ID = W25Q_ReadID();
printf("ID = 0x%08lX\r\n", ID);

W25Q_EraseSector(0);
W25Q_WriteBytes(0, Tx, 256);
W25Q_ReadBytes(0, Rx, 256);

if (memcmp(Tx, Rx, 256) == 0) printf("Test Passed\r\n");
else printf("Test Failed\r\n");

#include "W25Qxx.h"

// Inside main(), before while(1):
uint8_t Tx[256];
uint8_t Rx[256];

for (int i = 0; i < 256; i++) {
    Tx[i] = i;
}
memset(Rx, 0, 256);

uint32_t ID = W25Q_ReadID();
printf("ID = 0x%08lX\r\n", ID);

W25Q_EraseSector(0);
W25Q_WriteBytes(0, Tx, 256);
W25Q_ReadBytes(0, Rx, 256);

if (memcmp(Tx, Rx, 256) == 0) printf("Test Passed\r\n");
else printf("Test Failed\r\n");

Two buffers of 256 bytes are defined — one for transmit and one for receive. We fill the transmit buffer with a known pattern, then call W25Q_ReadID and print the returned ID. Next, we erase Sector 0 using W25Q_EraseSector, write the transmit buffer to address 0, and read it back into the receive buffer using W25Q_ReadBytes. Finally, we compare the two buffers. If they match means the test has passed.

Output

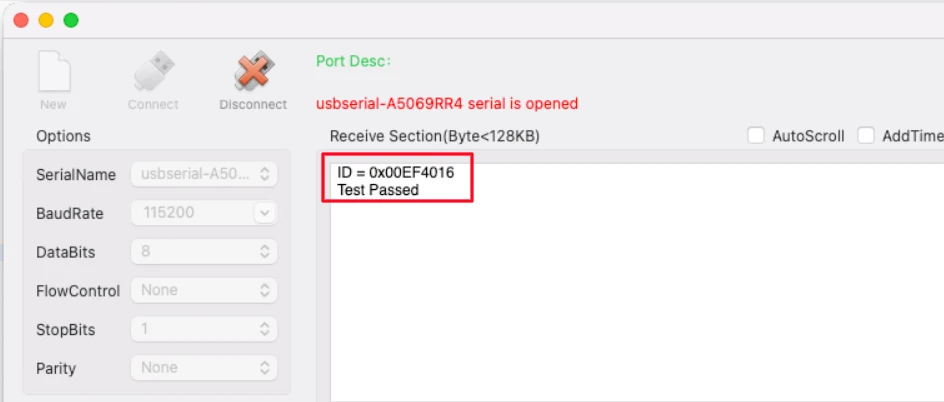

Serial console output showing W25Q ReadID result 0x00EF4016 and Test Passed confirmation

The console shows the ID of the W25Q module. For the W25Q16JV, the returned ID is 0x00EF4016 — EF is the Winbond manufacturer code and 4016 identifies the 16 Mbit variant. The “Test Passed” message confirms that read and write are working correctly.

STM32 USB MSC: Code and Results

We do not need to write anything in the main file. The entire code will be written in the usbd_storage_if.c file generated by the CubeMX. We will update this file to use the W25Q Flash module. Open the file and include the W25Q header at the top.

#include "W25Qxx.h"

#include "W25Qxx.h"

STORAGE_Init_FS — The W25Q module does not need any explicit initialization. It is ready to communicate over SPI as soon as the MCU starts. This function simply returns USBD_OK.

int8_t STORAGE_Init_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_Init_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

STORAGE_GetCapacity_FS — The W25Q16JV is 16 Mbit = 2 MB. With a block size of 4096 bytes, the total block count is 512. We pass 511 because the USB MSC requires one less than the actual count.

int8_t STORAGE_GetCapacity_FS(uint8_t lun, uint32_t *block_num, uint16_t *block_size)
{
    UNUSED(lun);
    *block_num  = 511;
    *block_size = 4096;
    printf("Blocks=%lu Size=%u\r\n", *block_num, *block_size);
    return (USBD_OK);
}

int8_t STORAGE_GetCapacity_FS(uint8_t lun, uint32_t *block_num, uint16_t *block_size)
{
    UNUSED(lun);
    *block_num  = 511;
    *block_size = 4096;
    printf("Blocks=%lu Size=%u\r\n", *block_num, *block_size);
    return (USBD_OK);
}

STORAGE_IsReady_FS — No special handling needed. It will always return USBD_OK.

STORAGE_IsWriteProtected_FS — The Flash module is not write-protected. Return USBD_OK.

STORAGE_Read_FS — The host provides a logical block address. We multiply it by 4096 to get the physical byte address, and multiply the block length by 4096 to get the total byte count. We add a log every 100 blocks to track progress on the serial console.

int8_t STORAGE_Read_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    W25Q_ReadBytes(blk_addr * 4096, buf, blk_len * 4096);
    if (blk_addr % 100 == 0) {
        printf("READ: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

int8_t STORAGE_Read_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    W25Q_ReadBytes(blk_addr * 4096, buf, blk_len * 4096);
    if (blk_addr % 100 == 0) {
        printf("READ: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

STORAGE_Write_FS — This is the most involved function. Since W25Q Flash memory cannot overwrite existing data, we must erase each sector before writing. And since the page size is 256 bytes, we write the 4 KB sector in sixteen 256-byte chunks.

int8_t STORAGE_Write_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    for (uint32_t b = 0; b < blk_len; b++) {
        W25Q_EraseSector(blk_addr + b);
        for (uint32_t i = 0; i < 4096; i += 256) {
            W25Q_WriteBytes((blk_addr + b) * 4096 + i, &buf[b * 4096 + i], 256);
        }
    }
    if (blk_addr % 100 == 0) {
        printf("WRITE: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

int8_t STORAGE_Write_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    for (uint32_t b = 0; b < blk_len; b++) {
        W25Q_EraseSector(blk_addr + b);
        for (uint32_t i = 0; i < 4096; i += 256) {
            W25Q_WriteBytes((blk_addr + b) * 4096 + i, &buf[b * 4096 + i], 256);
        }
    }
    if (blk_addr % 100 == 0) {
        printf("WRITE: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

The outer loop iterates over each requested block. For each block, we first erase the sector, then write 4096 bytes in 256-byte pages. The log prints after every 100 block addresses so we can track the operation on the serial console.

Here is the complete usbd_storage_if.c with all six functions implemented:

#include "usbd_storage_if.h"
#include "W25Qxx.h"

int8_t STORAGE_Init_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_GetCapacity_FS(uint8_t lun, uint32_t *block_num, uint16_t *block_size)
{
    UNUSED(lun);
    *block_num  = 511;
    *block_size = 4096;
    printf("Blocks=%lu Size=%u\r\n", *block_num, *block_size);
    return (USBD_OK);
}

int8_t STORAGE_IsReady_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_IsWriteProtected_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_Read_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    W25Q_ReadBytes(blk_addr * 4096, buf, blk_len * 4096);
    if (blk_addr % 100 == 0) {
        printf("READ: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

int8_t STORAGE_Write_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    for (uint32_t b = 0; b < blk_len; b++) {
        W25Q_EraseSector(blk_addr + b);
        for (uint32_t i = 0; i < 4096; i += 256) {
            W25Q_WriteBytes((blk_addr + b) * 4096 + i, &buf[b * 4096 + i], 256);
        }
    }
    if (blk_addr % 100 == 0) {
        printf("WRITE: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

#include "usbd_storage_if.h"
#include "W25Qxx.h"

int8_t STORAGE_Init_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_GetCapacity_FS(uint8_t lun, uint32_t *block_num, uint16_t *block_size)
{
    UNUSED(lun);
    *block_num  = 511;
    *block_size = 4096;
    printf("Blocks=%lu Size=%u\r\n", *block_num, *block_size);
    return (USBD_OK);
}

int8_t STORAGE_IsReady_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_IsWriteProtected_FS(uint8_t lun)
{
    UNUSED(lun);
    return (USBD_OK);
}

int8_t STORAGE_Read_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    W25Q_ReadBytes(blk_addr * 4096, buf, blk_len * 4096);
    if (blk_addr % 100 == 0) {
        printf("READ: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

int8_t STORAGE_Write_FS(uint8_t lun, uint8_t *buf, uint32_t blk_addr, uint16_t blk_len)
{
    UNUSED(lun);
    for (uint32_t b = 0; b < blk_len; b++) {
        W25Q_EraseSector(blk_addr + b);
        for (uint32_t i = 0; i < 4096; i += 256) {
            W25Q_WriteBytes((blk_addr + b) * 4096 + i, &buf[b * 4096 + i], 256);
        }
    }
    if (blk_addr % 100 == 0) {
        printf("WRITE: ADDR=%lu LEN=%u\r\n", blk_addr, blk_len);
    }
    return (USBD_OK);
}

Formatting and Testing the Drive

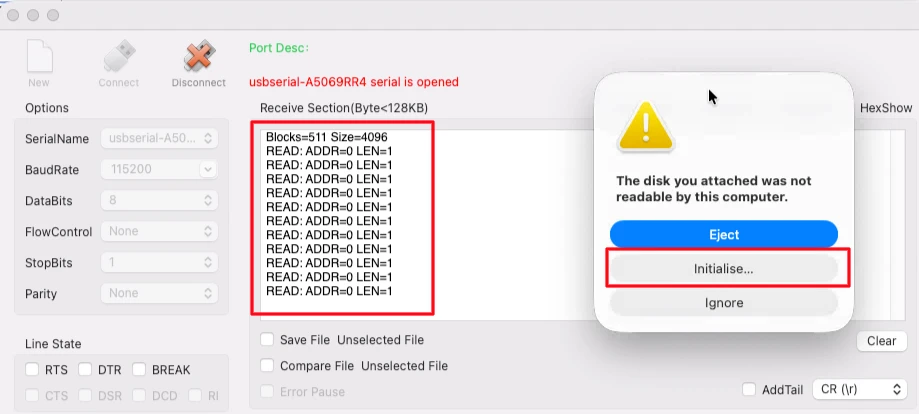

Flash the project and connect the USB cable to the board. Activity immediately appears on the serial console. The STORAGE_GetCapacity_FS function is called first, and the block count and block size are printed just as we defined them. After that, the host sends some read requests. Since there is no file system on the Flash memory yet, the operating system prompts us to format the drive. This is a one-time operation.

Serial console output after USB connection showing STORAGE_GetCapacity blocks and size for W25Q Flash

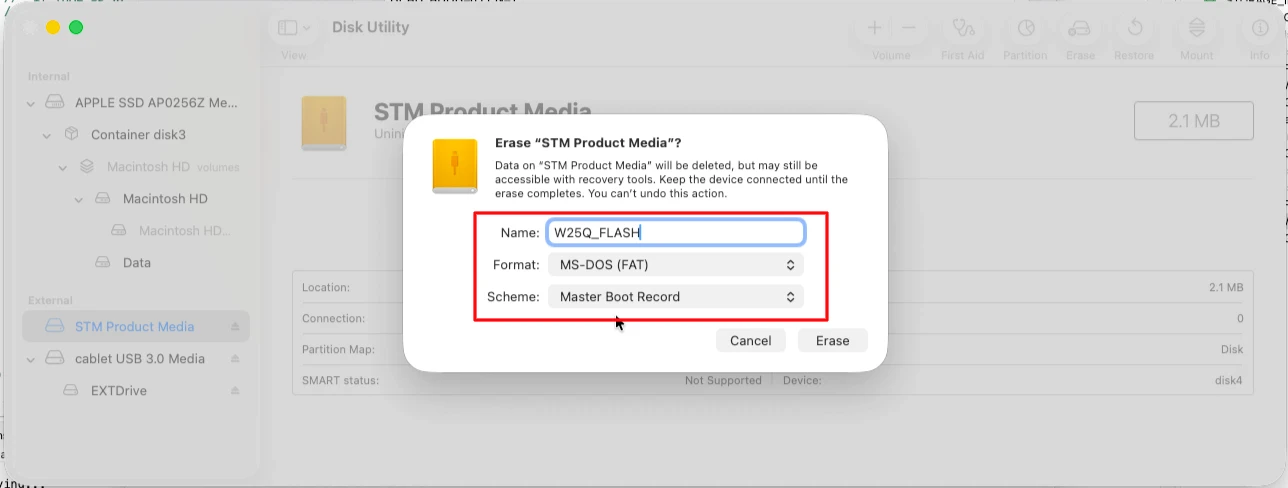

Open Disk Utility / Disk Management. The disk size shows approximately 2.1 MB, which is correct for a 16 Mbit device. Format it with FAT32 and Master Boot Record. Name it “W25Q_Flash”.

W25Q Flash drive appearing in file explorer as 2 MB removable drive after FAT32 formatting on STM32

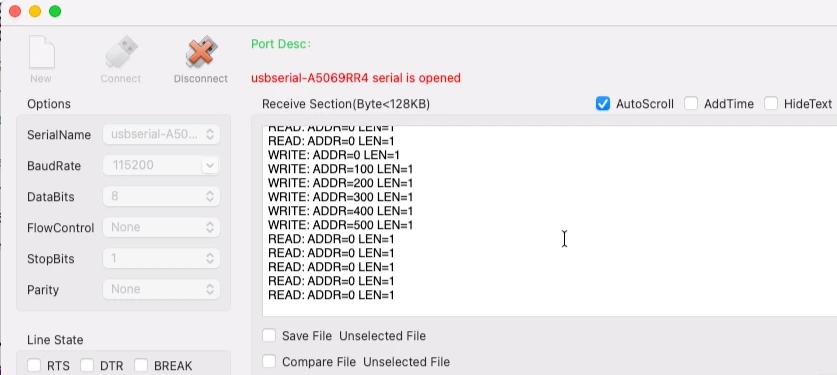

During formatting, write operations take place and log messages appear on the serial console after every 100 block addresses. Since the total block count is 512, the addresses go up to around 500. The formatting takes a bit of time, so keep checking the logs.

Read an write operations taking place on W25Q flash memory connected via STM32 USB Mass storage class

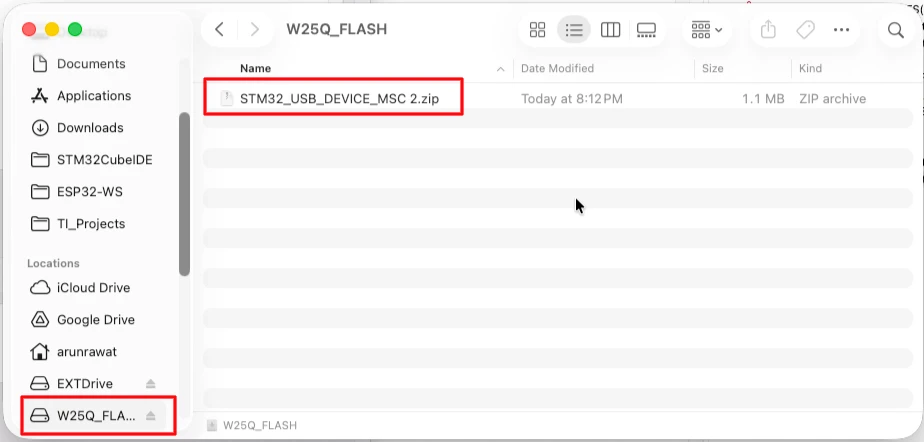

Once formatting is complete, the W25Q Flash drive appears as a new device in the file explorer. We can copy files into it just like any other external drive.

W25Q Flash drive showing copied files intact after full power loss — STM32 USB Mass Storage non-volatile retention test

STM32 USB Mass Storage Class with W25Q NOR Flash — Video Tutorial

This video walks through using the W25Q SPI NOR Flash module as a USB Mass Storage device on the STM32. We configure SPI1 in CubeMX, integrate the W25Q library, implement the storage interface functions, and demonstrate the Flash module appearing as a removable drive on the computer — with full read, write, and power-cycle retention tests.

STM32 USB MSC W25Q — FAQs

Can I use a different W25Q chip, like the W25Q32 or W25Q64?

Yes. Change the W25Q_CHIP_SIZE definition in the library source file to the correct megabit value. For example, set it to 32 for W25Q32 or 64 for W25Q64. The block count in STORAGE_GetCapacity_FS will need to be updated as well — divide the total byte size by 4096 and subtract 1.

Why does the write operation take longer than the SD card?

NOR Flash requires an erase before every write, and erase operations on Flash memory are slow — a single sector erase can take a few milliseconds. For a full format of 2 MB, that adds up. SD cards handle this internally and use wear-leveling algorithms that make writes appear faster.

Can I use SPI2 or SPI3 instead of SPI1?

Yes. Update the W25Q_SPI definition in the library source file to point to the correct SPI handle, such as hspi2 or hspi3. Also update the pin assignments in CubeMX accordingly.

Why is the block count set to 511 instead of 512?

The USB Mass Storage Class expects the block count to be reported as one less than the actual total. This is a protocol requirement — the host interprets the value as the index of the last block, not the total count. So for 512 blocks (indices 0 to 511), we report 511.

The drive shows up but files do not appear after reconnecting. What could be wrong?

This usually means the write did not complete before the USB was disconnected. Always eject the drive from the operating system before removing the cable, so the OS flushes any pending write operations to the Flash memory before the connection drops.

Conclusion

In this tutorial, we used the STM32 USB Mass Storage Class with a W25Q SPI NOR Flash module to create a removable USB drive. We configured SPI1 in CubeMX, integrated the W25Q library, tested the Flash memory independently, and implemented all six storage interface functions in usbd_storage_if.c.

The key differences from the SD card project were the 4 KB block size, the mandatory sector-erase before each write, and the 256-byte page write limit. Once those are handled correctly in the write function, everything else works the same as before.

In the next part of the series, we will look at the USB Composite Device, where we will implement USB CDC alongside either the HID or Mass Storage Class, allowing two USB functions to run simultaneously over a single USB connection.

Download STM32 USB MSC W25Q NOR Flash Project

Open source CubeMX project files, W25Q library, and HAL source code, tested on real hardware. Free to use — support the work if it helped you.

Open source CubeMX + HAL source W25Q Library included

View on GitHub Support my work

Browse More STM32 USB Tutorials

STM32 USB CDC: Virtual COM Port Setup, Transmit & Receive Data

STM32 USB CDC: Virtual COM Port Setup, Transmit & Receive Data

STM32 USB HID: Configure STM32 as a Gamepad with Joystick Input

STM32 USB HID Gamepad: Configure STM32 as a Game Controller

STM32 USB HID: Emulate a Mouse and Keyboard with STM32

STM32 as USB Mouse and Keyboard — HID Device Implementation

STM32 USB Mass Storage Class: Use SD Card as External Drive

STM32 USB Mass Storage Class: Use SD Card as External Drive

STM32 USB Composite Class: CDC + HID Gamepad Over a Single USB Port

STM32 USB Composite Class: CDC + HID Gamepad on One USB Port

About the Author

Arun Rawat

Embedded Systems Engineer · Founder, ControllersTech

Arun is an embedded systems engineer with 10+ years of experience in STM32, ESP32, and AVR microcontrollers. He created ControllersTech to share practical tutorials on embedded software, HAL drivers, RTOS, and hardware design — grounded in real industrial automation experience.

About YouTube GitHub Facebook Instagram Shop

Subscribe

0 Comments

Newest

Oldest Most Voted
