STM32 CAN Bus Communication Tutorial (Normal Mode)

In this STM32 CAN protocol tutorial, you will learn how to set up CAN bus communication using CubeMX and HAL. We will connect two STM32 boards through MCP2551 CAN transceivers and exchange data between them. Along the way, you will see how to configure CAN filters, interrupts, and data frames in a clear step-by-step manner. This guide is perfect if you want to understand CAN communication in STM32 microcontrollers and use it in your own embedded projects.

This tutorial covers the basic CAN protocol in STM32. We will learn how to set up communication between two STM32 microcontrollers using the CAN bus. To make this possible, we need at least two CAN transceivers, and in this guide, we will use the MCP2551 CAN transceivers.

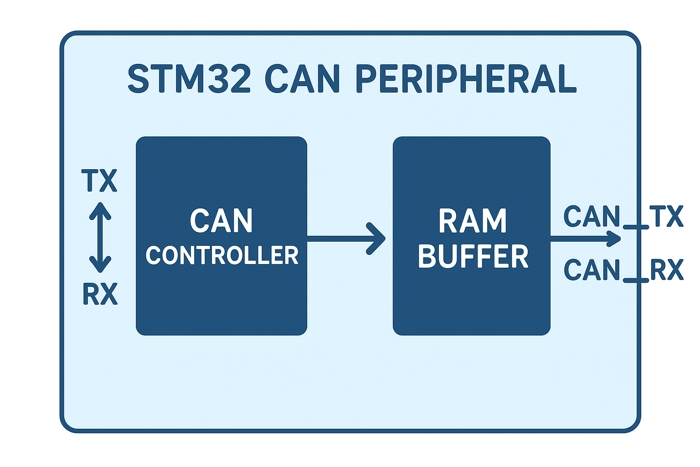

Introducing the CAN Peripheral in STM32 Microcontrollers

The CAN (Controller Area Network) peripheral in STM32 microcontrollers makes it easy to exchange data between multiple devices over a single bus. Originally built for cars, CAN is now used in industrial machines, robots, and many other embedded systems because it’s reliable, fast, and fault-tolerant.

In STM32, the CAN peripheral handles the low-level protocol mechanics, including message framing, filtering, error handling, and arbitration. It supports both standard (11-bit) and extended (29-bit) identifiers and can operate in normal, loopback, or silent modes, making it suitable for both development and deployment.

STM32 devices often include one or more FDCAN (Flexible Data-rate CAN) peripherals in newer series like STM32G4, H7, and L5, offering higher data throughput and improved flexibility over classic CAN.

Here are some important features of STM32 CAN:

1. Standard and Extended Frame Support
   Supports both 11-bit (standard) and 29-bit (extended) identifiers, making it compatible with a wide range of CAN-based systems.
2. Hardware Message Filtering
   Built-in filter banks allow selective message reception, reducing CPU overhead and improving efficiency.
3. Error Detection and Automatic Retransmission
   Includes robust error handling with automatic retransmission, fault confinement, and error counters for reliable communication.
4. Interrupt and DMA Support
   Offers both interrupt-driven and DMA-based data handling, enabling fast and efficient message processing.

Basics of the CAN Protocol

I won’t go into every small detail of the CAN protocol here. Instead, we will focus only on the key points you need to understand before working with STM32 CAN bus communication. If you want to explore more, you can always look up the detailed protocol specifications.

The CAN (Controller Area Network) protocol defines how different devices communicate with each other under specific rules. Users must always follow these rules while sending or receiving messages over CAN Bus.

CAN Frame Structure Overview

The image below shows the structure of a Standard CAN data frame, which is the most commonly used frame format in CAN-based systems.

A CAN frame is made up of several fields, each serving a specific purpose in communication:

Identifier (ID)

The Identifier represents the ID of the transmitting device or the type of message being sent. It also determines the priority of the message on the bus.

• 11-bit ID: Standard Identifier
• 29-bit ID: Extended Identifier

Lower ID values have higher priority during bus arbitration.

RTR (Remote Transmission Request)

The RTR bit specifies the type of CAN frame:

• 0: Data Frame (contains data)
• 1: Remote Frame (requests data from another node)

In most STM32 applications, you will primarily use data frames.

IDE (Identifier Extension)

The IDE bit indicates the type of identifier used:

• 0: Standard ID (11-bit)
• 1: Extended ID (29-bit)

This bit helps the CAN controller correctly interpret the frame format.

Reserved Bit (r)

The reserved bit is included for protocol compatibility and future extensions. It does not carry useful information for the application and is handled automatically by the CAN controller.

DLC (Data Length Code)

The DLC field specifies the number of data bytes contained in the frame.

• Valid range: 0 to 8 bytes (for Classical CAN)

This allows flexible payload sizes depending on application needs.

Data Field

The Data Field carries the actual application data.

• Size: 0 to 8 bytes
• Contents are completely user-defined

This is the main field you will work with when sending and receiving CAN messages in STM32.

CRC (Cyclic Redundancy Check)

The CRC field is used for error detection. It allows the receiving nodes to verify that the message was received correctly without corruption.

In STM32 applications, CRC handling is fully managed by the CAN hardware and HAL library, so you do not need to implement it manually.

ACK (Acknowledgment)

The ACK field is used to confirm successful reception of the message. If at least one node receives the message correctly, it sends an acknowledgment.

This process is also automatically handled by the CAN controller and HAL driver.

What We Will Focus On in This Tutorial

In this tutorial, we will mainly work with:

• Identifier (ID)
• DLC
• Data Field

The remaining fields, such as CRC, ACK, arbitration, and error handling, are taken care of by the STM32 CAN hardware and HAL library, allowing us to focus on application-level communication rather than protocol internals.

STM32 CAN CubeMX Configuration

To set up CAN communication in STM32, we need to configure the CAN peripheral in CubeMX and generate the initialization code with HAL. This setup includes selecting the CAN mode, setting bit timings, and enabling the required GPIO pins for CANH and CANL.

The CubeMX Configuration for the CAN Peripheral is shown below.

I am using CAN1 for this tutorial.

• Here the BAUD RATE is set to 500000 bps. You can try different different combinations for Prescaler and Time Quanta to achieve this.
• The Operating Mode is NORMAL Mode.
• Pins PA11 and PA12 are configured as CAN_RX and CAN_TX.

We also need to enable the pull-up resistor for the RX pin. This ensures the pin stays at a defined logic level when no signal is present, which helps avoid unwanted noise or false readings on the CAN bus.

STM32 MCP2551 Wiring Diagram

To establish CAN bus communication between two STM32 boards, we use MCP2551 CAN transceivers. Each STM32 is connected to its own MCP2551, which handles the physical layer signaling required by the CAN protocol. The two transceivers are then interconnected using the CANH and CANL lines to form the CAN bus.

To maintain proper signal integrity and prevent reflections on the bus, a 120 Ω termination resistor must be placed between CANH and CANL. This resistor is typically required at each end of the CAN bus.

STM32 to MCP2551 Connections

For each STM32 board, connect the CAN peripheral pins to the MCP2551 as follows:

• CAN_TX (PA12) is connected to the TXD pin of the MCP2551
• CAN_RX (PA11) is connected to the RXD pin of the MCP2551
• 5V (VCC) is connected to the VDD pin of the MCP2551
• GND is connected to the VSS pin of the MCP2551

MCP2551 to CAN Bus Connections

The MCP2551 transceivers are connected together through the CAN bus lines:

• CANH of one MCP2551 is connected to CANH of the other MCP2551
• CANL of one MCP2551 is connected to CANL of the other MCP2551
• A 120 Ω termination resistor is placed between CANH and CANL

Transmitting the CAN Data Frame in STM32

After configuring the CAN peripheral and connecting the STM32 with the MCP2551 transceiver, the next step is to actually send data over the CAN bus. To do this, we first prepare the CAN frame by setting the header and filling in the data bytes. Then, we use the HAL functions to transmit the frame, which allows the STM32 to communicate with other nodes on the bus in real time.

Preparing the CAN Data Frame

Before we send any data, we need to prepare the CAN frame. This involves setting up the TxHeader with the message identifier, frame type, and data length, and then filling the TxData array with the actual bytes we want to transmit.

CAN_TxHeaderTypeDef   TxHeader;
uint8_t               TxData[8];
uint32_t              TxMailbox;

CAN_TxHeaderTypeDef   TxHeader;
uint8_t               TxData[8];
uint32_t              TxMailbox;

• Here TxHeader will be used to store the header information, like RTR, DLC, etc. This is the type CAN_TxHeaderTypeDef.
• TxData is used to store the data that we are going to transmit over the CAN bus.
• TxMailbox is the mailbox, which will be sent to the CAN bus.

Next, we will place the required values into TxHeader and TxData. The header will hold details like the identifier and data length, while the data array will store the actual bytes we want to transmit over the CAN bus.

TxHeader.IDE = CAN_ID_STD;
TxHeader.StdId = 0x446;
TxHeader.RTR = CAN_RTR_DATA;
TxHeader.DLC = 2;

TxData[0] = 50;
TxData[1] = 0xAA;

TxHeader.IDE = CAN_ID_STD;
TxHeader.StdId = 0x446;
TxHeader.RTR = CAN_RTR_DATA;
TxHeader.DLC = 2;

TxData[0] = 50;
TxData[1] = 0xAA;

• Here CAN_ID_STD means that we are using the Standard ID (not extended)
• 0x446 is the Identifier. This is the ID of the Transmitter, and it should be maximum 11 bit wide for the Standard ID.
• CAN_RTR_DATA indicates that we are sending a data frame
• DLC is the Length of data bytes, and here we are sending 2 data Bytes
• Finally, store the 2 data bytes to be transmitted in the TxData array

Sending the CAN Data Frame

Once the frame is ready, we can send it over the CAN bus using the HAL function provided in STM32CubeMX. At this stage, the STM32 passes the header and data to the CAN peripheral, which then communicates with the MCP2551 transceiver.

if (HAL_CAN_AddTxMessage(&hcan1, &TxHeader, TxData, &TxMailbox) != HAL_OK)
{
   Error_Handler ();
}

if (HAL_CAN_AddTxMessage(&hcan1, &TxHeader, TxData, &TxMailbox) != HAL_OK)
{
   Error_Handler ();
}

This can be done by using the function HAL_CAN_AddTxMessage. It have the following parameters

• hcan1 is the instance of the CAN, that we are using.
• TxHeader is the Header of the message.
• TxData is the Data field.
• TxMailbox is the mailbox, which will carry the header and data message.

Result of CAN Data Transmission in STM32

The image below shows the waveform captured during a CAN data frame transmission from the STM32. It highlights different fields of the frame, such as the identifier, control bits, data bytes, and CRC value.

• Standard CAN Identifier (0x446): This is the message ID that defines the priority of the frame.
• Control Field (0x2): It specifies the type of frame and the data length (DLC, RTR, IDE).
• Data Field Bytes (0x64, 0x0A): The 2 bytes of data (Payload) we are transmitting.
• CRC Value (0x1459): This field ensures error detection by verifying data integrity.
• ACK/NACK: At the end of the frame, acknowledgment bits confirms successful reception or failure.

This result confirms that the STM32 successfully prepared and transmitted a valid CAN bus frame with the configured data.

When the CAN bus transmits a message, all connected devices can see it. However, each device’s filter configuration decides whether to accept it. The device receives and processes the message only if it matches the defined filter rules.

Configuring CAN Filters in STM32

To reduce CPU load and avoid handling unwanted messages in software, STM32 microcontrollers include built-in filters inside the CAN peripheral. These filters decide which messages should be accepted and which should be ignored. Let’s take a closer look at how they work.

  CAN_FilterTypeDef canfilterconfig;

  canfilterconfig.FilterActivation = CAN_FILTER_ENABLE;
  canfilterconfig.FilterBank = 18;  // which filter bank to use from the assigned ones
  canfilterconfig.FilterFIFOAssignment = CAN_FILTER_FIFO0;
  canfilterconfig.FilterIdHigh = 0x446<<5;
  canfilterconfig.FilterIdLow = 0;
  canfilterconfig.FilterMaskIdHigh = 0x446<<5;
  canfilterconfig.FilterMaskIdLow = 0x0000;
  canfilterconfig.FilterMode = CAN_FILTERMODE_IDMASK;
  canfilterconfig.FilterScale = CAN_FILTERSCALE_32BIT;
  canfilterconfig.SlaveStartFilterBank = 20;  // how many filters to assign to the CAN1 (master can)

  HAL_CAN_ConfigFilter(&hcan1, &canfilterconfig);

  CAN_FilterTypeDef canfilterconfig;

  canfilterconfig.FilterActivation = CAN_FILTER_ENABLE;
  canfilterconfig.FilterBank = 18;  // which filter bank to use from the assigned ones
  canfilterconfig.FilterFIFOAssignment = CAN_FILTER_FIFO0;
  canfilterconfig.FilterIdHigh = 0x446<<5;
  canfilterconfig.FilterIdLow = 0;
  canfilterconfig.FilterMaskIdHigh = 0x446<<5;
  canfilterconfig.FilterMaskIdLow = 0x0000;
  canfilterconfig.FilterMode = CAN_FILTERMODE_IDMASK;
  canfilterconfig.FilterScale = CAN_FILTERSCALE_32BIT;
  canfilterconfig.SlaveStartFilterBank = 20;  // how many filters to assign to the CAN1 (master can)

  HAL_CAN_ConfigFilter(&hcan1, &canfilterconfig);

1. Enable Filters with FilterActivation
   You must enable filters using the FilterActivation parameter. Without enabling them, no filtering takes place.
2. Assign and Select Filter Banks
   • On controllers with dual CAN peripherals, you can distribute 28 Filter Banks between CAN1 and CAN2. For example, assign 20 Banks to CAN1 (SlaveStartFilterBank) and the rest to CAN2, then select a specific Bank (e.g., Bank 18) for filtering.
   • On controllers with a single CAN peripheral, you can only use Banks 0–13.
3. Configure Filter Parameters
   • Use FilterFIFOAssignment to decide which FIFO (FIFO0 or FIFO1) will store received messages.
   • Set FilterMode to either Mask Mode (compare selected bits) or List Mode (compare full IDs). Mask Mode is often more practical.
   • Choose FilterScale to use either one 32-bit register or two 16-bit registers.
   • Set FilterIdHigh to define which ID bits to compare (e.g., shift the STD ID by 5 because it starts at bit 5).
   • Set FilterMaskIdHigh to enable comparison of specific bits between the ID register and the incoming ID.

I recommend watching the video below. It demonstrates the working example in action, which explains the concept more clearly than text alone.

Receiving CAN Data in STM32

To handle incoming messages efficiently, we will use an interrupt for the RX FIFO. Whenever a message passes the filter, the CAN peripheral triggers an interrupt, allowing the STM32 to capture the data immediately. The first step in this process is enabling the CAN1 RX0 interrupt in CubeMX.

Enabling the CAN1 RX0 Interrupt in CubeMX

This image below shows the configuration of the CAN1 RX0 interrupt in STM32CubeMX.

When you enable this interrupt, the STM32 automatically triggers the Interrupt Service Routine (ISR) each time a new CAN message passes through the filter and enters the RX FIFO 0 buffer. This allows the microcontroller to receive messages instantly without continuous polling, which reduces CPU load and improves overall efficiency.

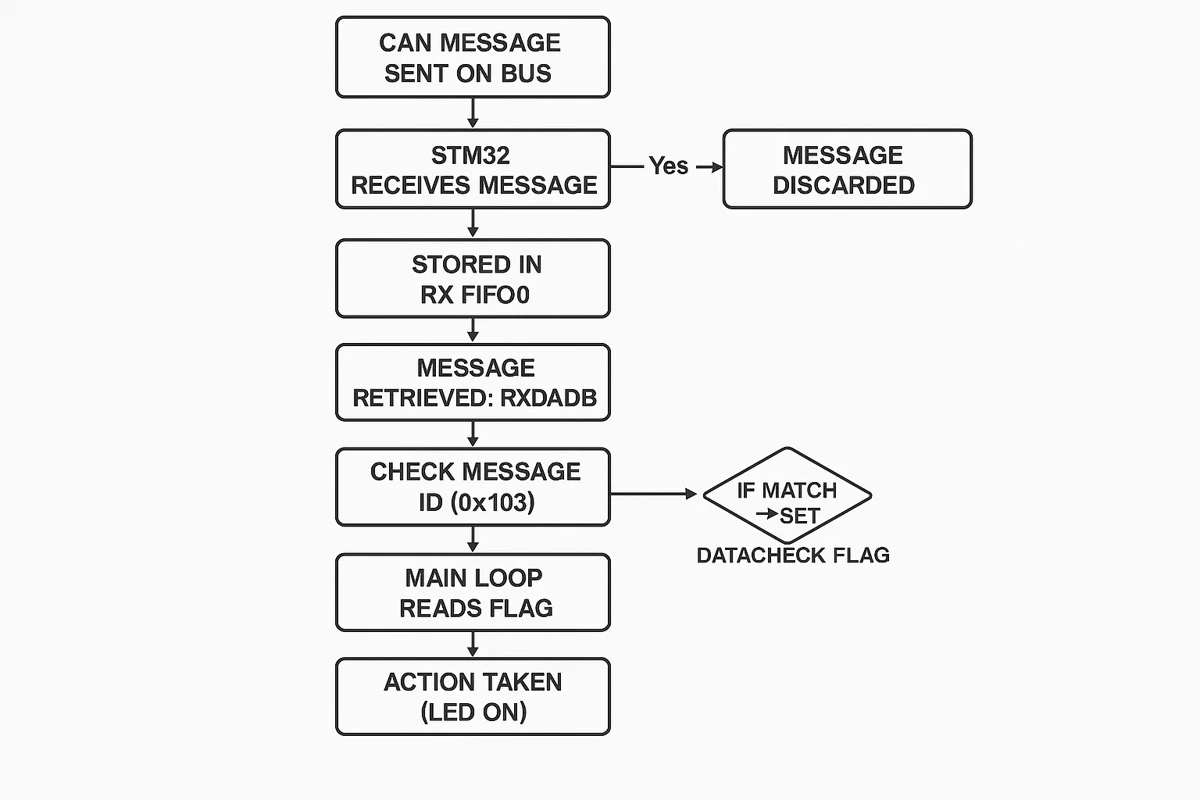

Handling CAN Message Reception with Interrupts

To receive messages efficiently, we enable CAN notifications inside the main() function. This mechanism triggers an interrupt whenever a new message arrives in RX FIFO0 and automatically executes the corresponding callback function.

In the main function, we activate the notification using:

  if (HAL_CAN_ActivateNotification(&hcan1, CAN_IT_RX_FIFO0_MSG_PENDING) != HAL_OK)
  {
	  Error_Handler();
  }

  if (HAL_CAN_ActivateNotification(&hcan1, CAN_IT_RX_FIFO0_MSG_PENDING) != HAL_OK)
  {
	  Error_Handler();
  }

Here, we enable the CAN_IT_RX_FIFO0_MSG_PENDING interrupt, which triggers whenever a new message is pending in RX FIFO0.

Once the interrupt occurs, the callback function HAL_CAN_RxFifo0MsgPendingCallback is called. In this function, we retrieve the received message header and data, and perform further checks if required.

CAN_RxHeaderTypeDef   RxHeader;
uint8_t               RxData[8];

void HAL_CAN_RxFifo0MsgPendingCallback(CAN_HandleTypeDef *hcan)
{
  if (HAL_CAN_GetRxMessage(hcan, CAN_RX_FIFO0, &RxHeader, RxData) != HAL_OK)
  {
    Error_Handler();
  }
  if ((RxHeader.StdId == 0x103))
  {
	  datacheck = 1;
  }
}

CAN_RxHeaderTypeDef   RxHeader;
uint8_t               RxData[8];

void HAL_CAN_RxFifo0MsgPendingCallback(CAN_HandleTypeDef *hcan)
{
  if (HAL_CAN_GetRxMessage(hcan, CAN_RX_FIFO0, &RxHeader, RxData) != HAL_OK)
  {
    Error_Handler();
  }
  if ((RxHeader.StdId == 0x103))
  {
	  datacheck = 1;
  }
}

• Here we will Receive the message from RX_FIFO 0.
• The program stores the message header in RxHeader and the data in RxData.
• It then checks whether the message was received from ID 0x103; if true, it sets the datacheck flag.

In the main loop, we can use the datacheck flag to perform actions. For example, if the flag is set, we turn on an LED:

if (datacheck)
{
 HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET);
}

if (datacheck)
{
 HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET);
}

This way, only when a valid CAN message with ID 0x103 is received, the LED will light up.

Result with Video Tutorial

Conclusion

In this tutorial, we explored how to use the CAN protocol with STM32, starting from the essential hardware connections and moving through peripheral configuration, message transmission, and reception. We also examined how CAN filters, RX FIFOs, and interrupts work together to ensure that only relevant messages are processed, keeping the communication efficient and reliable. By handling reception through interrupts and callbacks, we significantly reduce CPU load and follow best practices for real-time embedded systems.

With this foundation, you are now well equipped to build more advanced CAN-based applications, such as multi-node networks, distributed sensor systems, motor controllers, or automotive-style communication setups. The same concepts demonstrated here scale naturally as the network grows in size and complexity.

If you want to take the next step, check out my guide on FDCAN Normal Mode in STM32, where we dive into Flexible Data-Rate CAN (FDCAN). This allows higher data throughput, larger payloads, and more robust communication, which is ideal for modern, high-performance embedded applications.
