GP2Y0A41SK0F Arduino Tutorial: Measure Distance with Serial Monitor and LCD1602 I2C

Interfacing a distance sensor with Arduino is always a fun and useful project. In this tutorial, we will learn how to use the GP2Y0A41SK0F infrared distance sensor with Arduino, step by step. This sensor is popular because it gives fast and stable distance readings. It works on an analog output, so the Arduino can read the values easily.

We will first read the raw analog values on the Serial Monitor. After that, we will calculate the real distance in centimetres. Once the readings are correct, we will display the distance on the LCD1602 I2C display. If you are new to I2C LCDs, you can also check my detailed guide: I2C LCD1602 Arduino Tutorial.

GP2Y0A41SK0F Arduino Tutorial: Measure Distance with Serial Monitor and LCD1602 I2C

What is GP2Y0A41SK0F and How It Works

The GP2Y0A41SK0F is a popular short-range IR distance sensor. It is easy to use, accurate, and works smoothly with Arduino. Before wiring and coding, let’s understand its basics and how it measures distance.

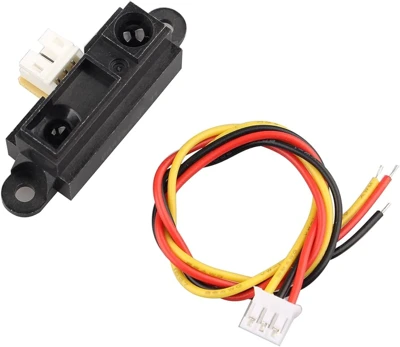

GP2Y0A41SK0F IR distance sensor module.

Overview of the GP2Y0A41SK0F Sensor Module

The GP2Y0A41SK0F is an infrared proximity sensor made by Sharp. It detects objects between 4 cm and 30 cm. This makes it ideal for short-range distance sensing.

Key points about the sensor:

  • It uses infrared light to measure distance.
  • Output is analog voltage, so Arduino can read it with an analog pin.
  • It is more stable than simple IR obstacle sensors.
  • It works well even with objects of different colors.

The module has three pins: VCC, GND, and OUT. You can power it using 5V from the Arduino.


Working Principle (Infrared Triangulation Method)

The sensor uses infrared triangulation, which is more accurate than basic reflection-based IR sensors.

Here’s how it works:

  1. The IR LED inside the sensor emits a beam of infrared light.
  2. The light hits the object and reflects back.
  3. A position-sensitive detector (PSD) inside the sensor receives the reflected beam.
  4. The angle of reflection changes with distance.
  5. The sensor converts this angle into a voltage value.

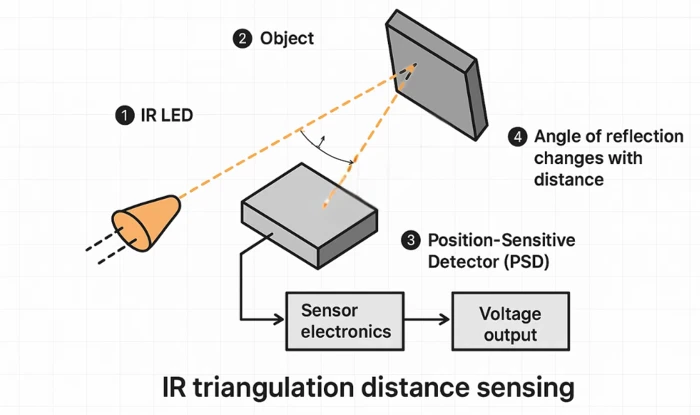

Image showing the infrared triangulation method used by GP2Y0A41SK0F to calculate distance.

This method makes the sensor very stable. It is less affected by ambient light and object color. That is why it is widely used in robotics and automation.


Output Voltage vs Distance Characteristics

The key thing to understand about this sensor is that the output voltage is not linear.

  • When an object is closer, the output voltage is higher.
  • When the object moves farther, the voltage drops.

But the change is not uniform. The sensor has a curved response graph, meaning distance and voltage do not increase or decrease in a straight line.

Typical readings:

DistanceApprox. Output Voltage
4 cm~3.0V
10 cm~1.5V
20 cm~0.9V
30 cm~0.4V

Because of this non-linear behavior, we must apply a conversion formula later in the tutorial to convert ADC values into accurate distance values.


Why Choose GP2Y0A41SK0F for Arduino Projects

This sensor is a favorite among beginners and makers. Here are the reasons:

  • Stable readings compared to ultrasonic sensors in short range
  • Fast response time, useful in moving robots
  • Simple to wire using just one analog pin
  • No calibration required for basic use
  • Works well in low light and daylight

Wiring GP2Y0A41SK0F with Arduino

Before coding, we must connect the sensor to the Arduino correctly. The GP2Y0A41SK0F is simple to wire because it uses only three pins. In this section, we also add the LCD1602 I2C module, which will display the distance values later in the tutorial.

Pinout of GP2Y0A41SK0F Sensor

The sensor module comes with three pins, and each pin has a clear function:

  • VCC: Power input (4.5V–5.5V)
  • GND: Ground
  • OUT: Analog output voltage

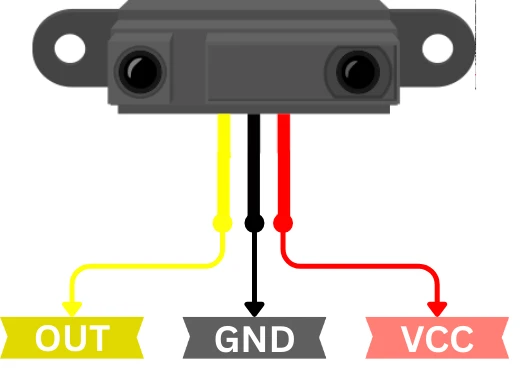

Image showing pinout of GP2Y0A41SK0F IR sensor.

The OUT pin gives a changing voltage based on how far the object is. We will read this voltage using one of the Arduino’s analog pins.


Connection Diagram with Arduino UNO

The wiring to Arduino UNO is very simple:

Sensor PinArduino Pin
VCC5V
GNDGND
OUTA0

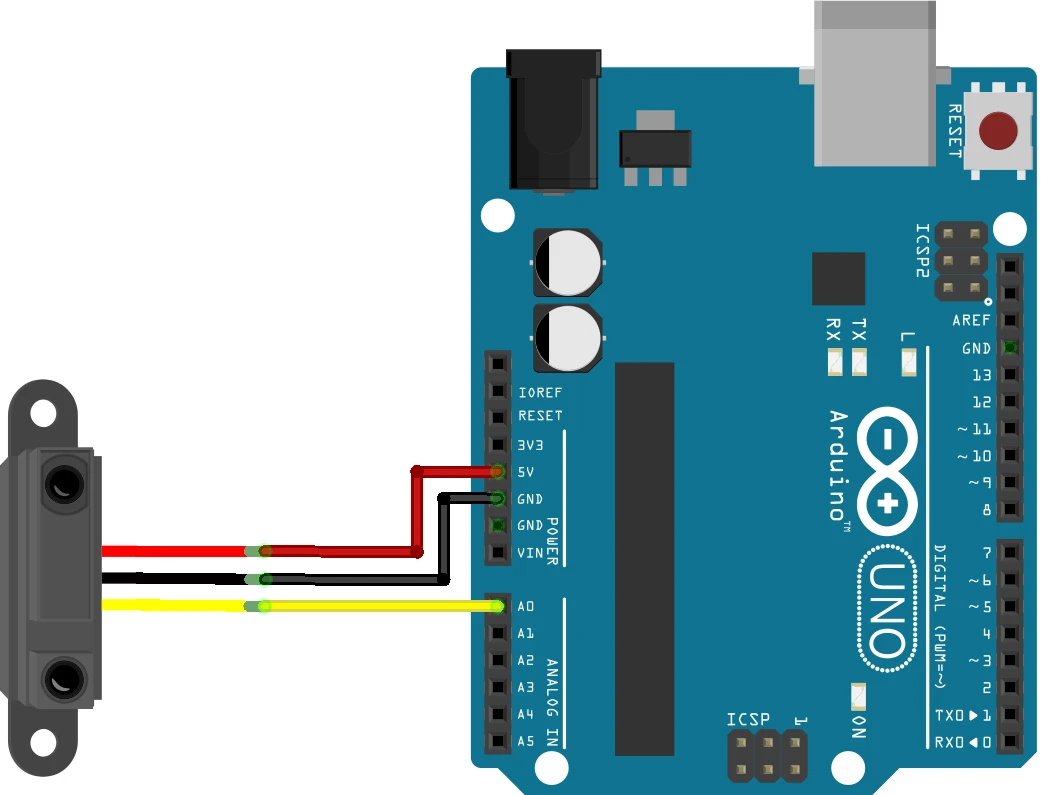

Image showing wiring connection between Arduino and P2Y0A41SK0F IR sensor.

This is all you need to start reading distance values. Make sure the ground connections are common for stable output.


Reading Raw Analog Values from GP2Y0A41SK0F

We start with basic readings from the analog pin and print them on the Serial Monitor. This helps us understand how the sensor responds before converting the values into distance. The raw ADC value will change as the object moves closer or farther from the sensor.

Arduino Code to Read Raw ADC Data

int sensorPin = A0;   // GP2Y0A41SK0F output connected to A0
int rawValue = 0;     // variable to store ADC value

void setup() {
  Serial.begin(9600);       // Start serial communication
}

void loop() {
  rawValue = analogRead(sensorPin);   // Read the raw analog value
  Serial.print("Raw ADC Value: ");
  Serial.println(rawValue);           // Print the value on Serial Monitor

  delay(200);                         // Small delay for readability
}

Explanation:

  • We first set A0 as the input pin where the sensor output is connected.
  • In setup(), we start the Serial Monitor at 9600 baud rate.
  • Inside the loop(), we use analogRead() to read the sensor’s output voltage.
  • The raw ADC value will be between 0 and 1023 because Arduino uses a 10-bit ADC.
  • We print this raw value on the Serial Monitor.
  • A short delay is added so the readings are easy to view.

This simple test ensures that our wiring is correct and the sensor is responding properly.


Output

The video below shows the output of the code above. The raw values are printed on the serial monitor of the Arduino IDE.

Converting Raw Values to Distance (cm)

After reading the raw values, we convert them into real distance in centimetres. The GP2Y0A41SK0F sensor has a non-linear output curve, so we use an approximate formula to map the raw ADC values to distance.

Arduino Code for Distance Calculation

int sensorPin = A0;
int rawValue = 0;
float distanceCM = 0;

void setup() {
  Serial.begin(9600);
}

void loop() {
  rawValue = analogRead(sensorPin);   // Read raw ADC value

  // Convert ADC reading to voltage
  float voltage = rawValue * (5.0 / 1023.0);

  // Convert voltage to distance (approx formula)
  distanceCM = 12.08 * pow(voltage, -1.058);

  Serial.print("Distance: ");
  Serial.print(distanceCM, 1);                   // Print distance with 1 decimal
  Serial.println(" cm");

  delay(200);
}

Explanation:

  • First, we read the raw ADC value using analogRead().
  • The value is converted to voltage because formulas for this sensor work in volts, not raw numbers.
  • The approximate equation is applied to compute the distance in cm.
  • We print the distance on the Serial Monitor.
  • A short delay allows stable reading.

Formula Used for Distance Conversion

The sensor output follows a non-linear voltage curve, so we use an approximate equation widely used for this sensor:

distance (cm) = 12.08 * (voltage ^ -1.058)

What this means:

  • When voltage is high, the distance becomes small (object is near).
  • When voltage is low, the distance becomes large (object is far).
  • The negative power creates the non-linear behaviour needed for this sensor.

This formula gives good accuracy for 4 cm to 30 cm, which is the sensor’s range.


Output

The video below shows the output of the code above. The distance values are printed on the serial monitor of the Arduino IDE.

Displaying Distance on LCD1602 I2C

Once the serial output works, we show the same distance reading on the I2C LCD1602. This makes the project complete and visually clear.

Wiring GP2Y0A41SK0F Sensor + I2C LCD1602 with Arduino

The image below shows the wiring connection between GP2Y0A41SK0F Sensor, LCD1602 and Arduino Uno.

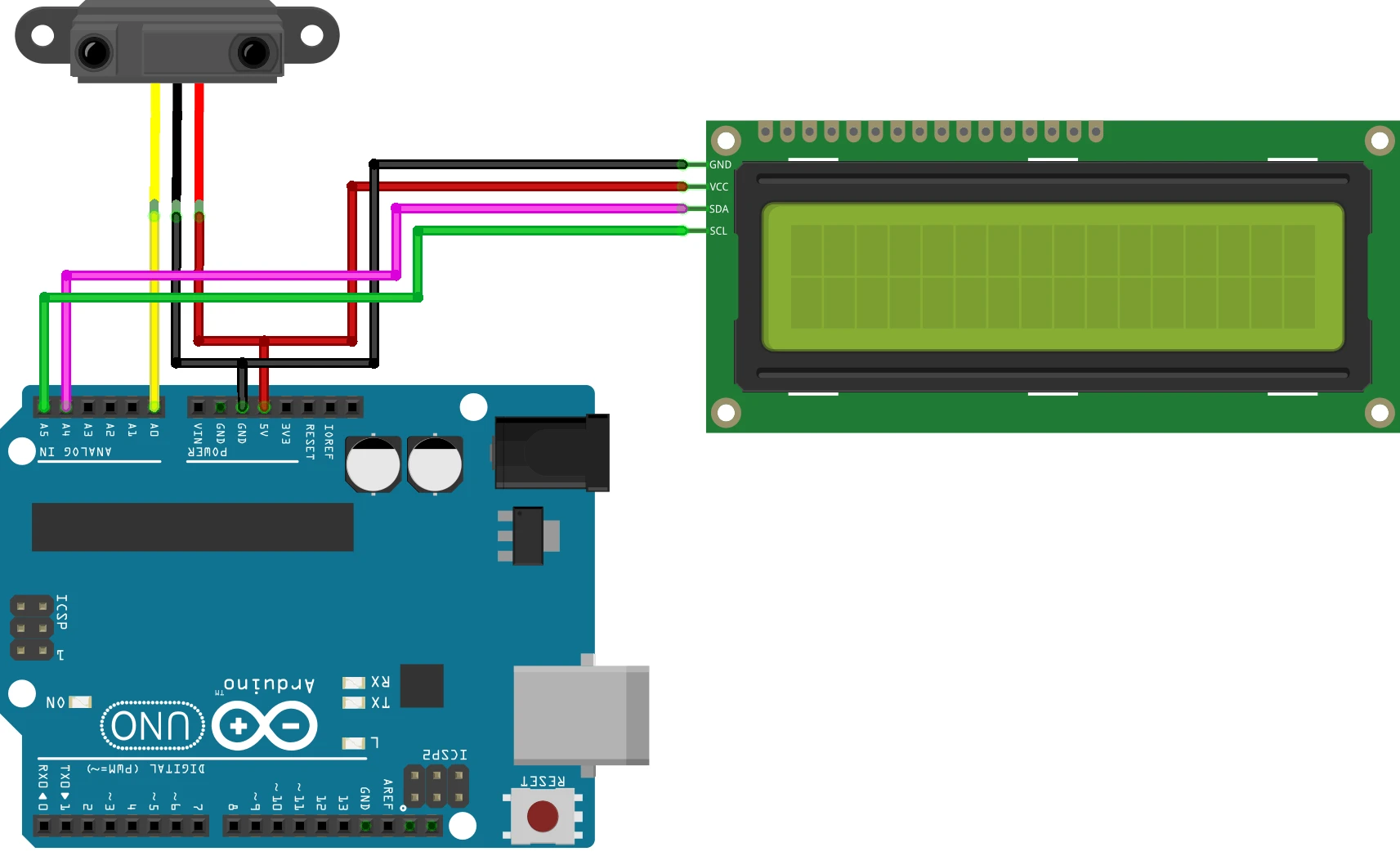

Image showing Wiring connection between Arduino, GP2Y0A41SK0F IR sensor and LCD1602. The LCD is connected via I2C.

Here is the complete wiring table for both, the sensor and the LCD:

GP2Y0A41SK0F PinArduino Pin
VCC5V
GNDGND
OUTD0
LCD PinArduino Pin
GNDGND
VCC5V
SDAA4 (for Arduino UNO)
SCLA5 (for Arduino UNO)

Both modules work on 5V, so wiring is very simple.


Installing the LiquidCrystal_I2C Library

Before writing the code, install the LiquidCrystal_I2C library:

  1. Open Arduino IDE.
  2. Go to Sketch → Include Library → Manage Libraries.
  3. Search for “LiquidCrystal_I2C”.
  4. Install the version by Frank de Brabander or Marco Schwartz.
Add the I2C LCD1602 liquidcrystal_I2C library to Arduino IDE.

Arduino Code to Display Distance on LCD1602

#include <LiquidCrystal_I2C.h>

int sensorPin = A0;
float distanceCM = 0;

// Create LCD object: address 0x27, 16 columns, 2 rows
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  Serial.begin(9600);

  lcd.init();           // Initialize LCD
  lcd.backlight();      // Turn on backlight
}

void loop() {
  int rawValue = analogRead(sensorPin);
  float voltage = rawValue * (5.0 / 1023.0);
  distanceCM = 12.08 * pow(voltage, -1.058);

  // Print on Serial (optional)
  Serial.print("Distance: ");
  Serial.print(distanceCM, 1);
  Serial.println(" cm");

  // Show on LCD
  lcd.clear();
  lcd.setCursor(0, 0);
  lcd.print("Distance:");
  lcd.setCursor(0, 1);
  lcd.print(distanceCM, 1);
  lcd.print(" cm");

  delay(400);
}

Explanation of the LCD Code

  • We include the LiquidCrystal_I2C library to control the LCD easily.
  • An LCD object is created with address 0x27.
  • In setup(), the LCD is initialized and the backlight is turned on.
  • Inside the loop:
    • We read the sensor value.
    • Convert it to voltage and then to distance.
    • Print the distance on the Serial Monitor (optional).
    • Clear the LCD and print the updated distance on both rows.
  • The delay gives enough time for the screen to refresh smoothly.

Output

The video below shows the output of the code above. The distance values are printed on the serial monitor of the Arduino IDE.

Smoothing Sensor Output (Optional but Important)

The GP2Y0A41SK0F can produce noisy or jumpy readings, especially when objects move fast. To get stable results, we can smooth the sensor output using a simple moving average filter. This makes the distance readings steady and easier to read on the LCD.

Simple Moving Average Filter Code

#include <LiquidCrystal_I2C.h>

int sensorPin = A0;
float distanceCM = 0;

const int sampleCount = 10;        // Number of samples for smoothing
int samples[sampleCount];          // Array to store sensor values

LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  Serial.begin(9600);

  lcd.init();
  lcd.backlight();

  // Initialize samples to zero
  for (int i = 0; i < sampleCount; i++) {
    samples[i] = 0;
  }
}

int getSmoothedValue() {
  // Shift samples to left
  for (int i = 0; i < sampleCount - 1; i++) {
    samples[i] = samples[i + 1];
  }

  // Add new reading
  samples[sampleCount - 1] = analogRead(sensorPin);

  // Calculate average
  long sum = 0;
  for (int i = 0; i < sampleCount; i++) {
    sum += samples[i];
  }

  return sum / sampleCount;
}

void loop() {
  int rawValue = getSmoothedValue();   // Get filtered reading
  float voltage = rawValue * (5.0 / 1023.0);
  distanceCM = 12.08 * pow(voltage, -1.058);

  // Serial output
  Serial.print("Smooth Distance: ");
  Serial.print(distanceCM, 1);
  Serial.println(" cm");

  // LCD output
  lcd.clear();
  lcd.setCursor(0, 0);
  lcd.print("Smooth Dist:");
  lcd.setCursor(0, 1);
  lcd.print(distanceCM, 1);
  lcd.print(" cm");

  delay(300);
}

Explanation of the Filter

  • We store multiple sensor readings inside an array.
  • Every time the loop runs:
    • Old readings move left.
    • The newest reading is added at the end.
  • Then, we take the average of all stored values.
  • This smooths out sudden spikes or dips.
  • The smoothed reading is converted to distance just like before.

Applications of GP2Y0A41SK0F with Arduino

This section lists real-world uses of the GP2Y0A41SK0F sensor. Because it gives fast and reliable short-range distance readings, it fits perfectly in many practical Arduino projects.

Robot Obstacle Detection

Robots often need to detect objects in front of them to avoid collisions. The GP2Y0A41SK0F offers quick distance feedback, which helps a robot stop, slow down, or turn before hitting an obstacle. It works well even in low-light conditions, making it more reliable than simple light-based sensors.


Automatic Hand Sanitizer / Soap Dispenser

Touchless dispensers use a short-range distance sensor to detect a hand. The GP2Y0A41SK0F detects objects within a few centimeters, which is ideal for dispensing sanitizer or soap automatically. This creates a clean and hygienic user experience.


Smart Trash Bins

Smart bins open their lids automatically when a hand approaches. The sensor provides fast detection at close range, so the bin responds immediately. It is also stable under different lighting conditions, making it suitable for home and office automation.


Industrial Distance Monitoring

Industries use short-range distance sensors to measure part placement, machine alignment, and object detection on conveyor belts. The GP2Y0A41SK0F provides accurate readings for these controlled environments, making it a good choice for automation and quality-checking systems.

Conclusion

The GP2Y0A41SK0F distance sensor is a compact and highly reliable component for short-range distance measurement. When paired with Arduino, it becomes an excellent choice for projects that need quick, stable, and consistent readings. In this tutorial, we explored everything from basic wiring and serial testing to LCD output, filtering, and real-world applications.

By combining these features, you now have a solid foundation to build automation systems, smart gadgets, and robotics projects that depend on accurate distance detection. This sensor is easy to integrate, beginner-friendly, and flexible enough to scale into more advanced designs. Whether you’re experimenting, prototyping, or creating a final product, this sensor-Arduino setup offers dependable performance and plenty of creative possibilities.
