STM32 UART Receive Using DMA (Normal and Circular Mode) with LL Drivers

DMA is the best way to receive high-speed UART data on STM32. It allows the USART peripheral to move data directly into memory without using the CPU.

In the previous tutorial, we learned how to receive UART data using interrupts with LL drivers. That method works well for small data. But when the data rate increases, the CPU starts missing bytes.

This is where DMA (Direct Memory Access) becomes very powerful. With DMA, the USART hardware pushes data into RAM automatically. The CPU only wakes up when a block of data is ready. This makes the system fast and very reliable.

In this tutorial, we will learn how to use:

UART RX using DMA in Normal mode
UART RX using DMA in Circular mode

Both will be implemented using STM32 LL drivers.

We will also learn how to safely process the data without corruption. The technique used here is the same one used in many real-world products.

STM32 UART DMA Receive Overview

Before we start writing code, it is important to understand how UART DMA receive actually works inside the STM32. This section explains the basic idea in simple words. It also shows why DMA is much better than using RX interrupts when the data rate becomes high.

What is UART DMA?

UART DMA means that the USART peripheral sends received data directly to RAM using the DMA controller. The CPU is not involved in moving each byte.

When a new byte arrives on the UART RX pin, the USART puts it into its data register. At the same time, it sends a request to the DMA controller. The DMA then copies that byte into a memory buffer.

This process continues for every received byte.

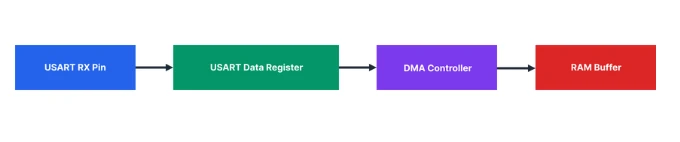

block diagram showing STM32 UART receive data flow from USART RX pin to USART data register, then to the DMA controller, and finally into a RAM buffer.

So the data flows straight into memory without using CPU instructions. The CPU only gets involved when the DMA tells it that a block of data is ready.

This is why UART DMA is very fast and very efficient.

Why DMA is Better than RX Interrupt

In RX interrupt mode, the CPU runs an interrupt for every received byte. At low speed, this works well. But when data comes quickly, the CPU starts spending too much time inside the UART ISR.

With DMA, this problem goes away. Here is the difference in simple terms.

RX interrupt: CPU handles every byte.
DMA: CPU handles only completed blocks.

In RX interrupt mode, the flow looks like this:

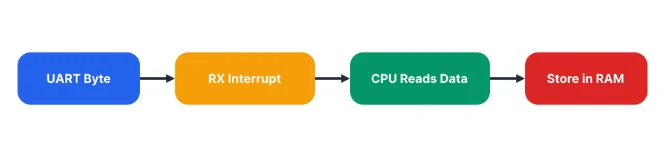

Block diagram showing UART data flow using RX interrupt, where a UART byte triggers an RX interrupt, the CPU reads the data, and the data is then stored into RAM.

In DMA mode, it becomes:

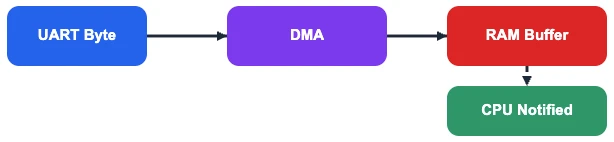

block diagram showing STM32 UART data flow from USART to DMA to RAM buffer, with a separate dashed arrow indicating a DMA interrupt sent to the CPU to notify that data is ready.

So instead of thousands of interrupts per second, the CPU gets only a few DMA interrupts. This makes the system faster and more stable, even at high baud rates.

This is why DMA is used in real applications like GPS, ESP AT commands, Modbus, and data loggers.

Difference Between Normal and Circular Mode

UART RX DMA has two important modes: Normal mode and Circular mode. Each one is used for a different type of data.

Normal mode is used when you know how many bytes you will receive. The DMA stops automatically after receiving that many bytes.

Example uses:

Modbus frames
GPS packets
OTA data blocks

Circular mode is used when data never stops. The DMA keeps filling the buffer again and again in a loop.

Example uses:

Serial console
ESP AT commands
Debug logs
Continuous data streams

In circular mode, the DMA buffer behaves like a ring. When it reaches the end, it starts again from the beginning. The CPU reads the data while the DMA keeps writing.

This makes circular mode perfect for real-time UART streaming.

STM32 UART RX DMA Hardware Flow

To use UART DMA correctly, we must understand how the hardware works inside the STM32. The USART and DMA do most of the work by themselves. The CPU only controls and supervises the process.

This section explains how the data moves from the UART pin to RAM without using the CPU for every byte.

How USART Triggers DMA

When a byte arrives on the UART RX pin, the USART stores it in its data register. This action sets an internal flag inside the USART.

If RX DMA is enabled, the USART sends a request to the DMA controller instead of raising an interrupt.

So the flow becomes:

block diagram showing STM32 UART receive data flow from USART RX pin to USART data register, then to the DMA controller.

The USART does not wait for the CPU. It directly asks the DMA to fetch the data. This happens for every received byte. This is why UART DMA can work at very high speeds without losing data.

How DMA Moves Data to RAM

When the DMA controller receives a request from the USART, it performs a simple operation. It reads one byte from the USART data register and writes it to the RAM buffer.

The DMA also updates two internal pointers:

The current memory address
The remaining data length

A small code example shows what the DMA is doing internally:

*memory_pointer = USART_DR;
memory_pointer++;
remaining_length--;

*memory_pointer = USART_DR;
memory_pointer++;
remaining_length--;

This process repeats for every received byte. No CPU instructions are executed during this copy.

When the buffer is half full or completely full, the DMA raises an interrupt. This is how the CPU knows that data is ready.

What Happens Without CPU Involvement

The most important advantage of UART DMA is that the CPU is not part of the data path.

The CPU does not:

Read UART registers
Store bytes into arrays
Handle interrupts for every byte

Instead, the CPU only reacts when a block of data is ready.

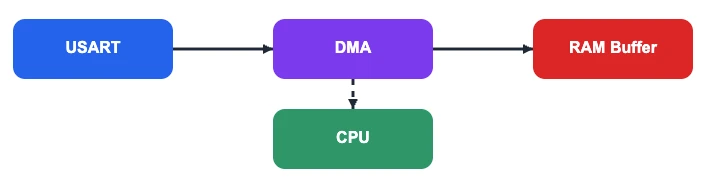

So the real data flow looks like this:

This separation makes the system very fast and very stable. Even when a long stream of data is coming, the CPU can continue running other tasks.

This is why DMA is the preferred way to handle UART in high-speed and real-time applications.

UART DMA Setup in STM32CubeMX (LL Drivers)

Inside CubeMX, the DMA configuration appears similar for both the STM32F103C8 and STM32F446RE MCUs. However, there are important differences at the DMA hardware level, and these differences affect how the DMA must be programmed in firmware.

Enabling USART2 DMA for Nucleo-F446

Nucleo boards come with an onboard ST-Link debugger that also provides a Virtual COM Port (VCP). This VCP is connected internally to USART2, making it a great choice for UART communication without additional hardware.

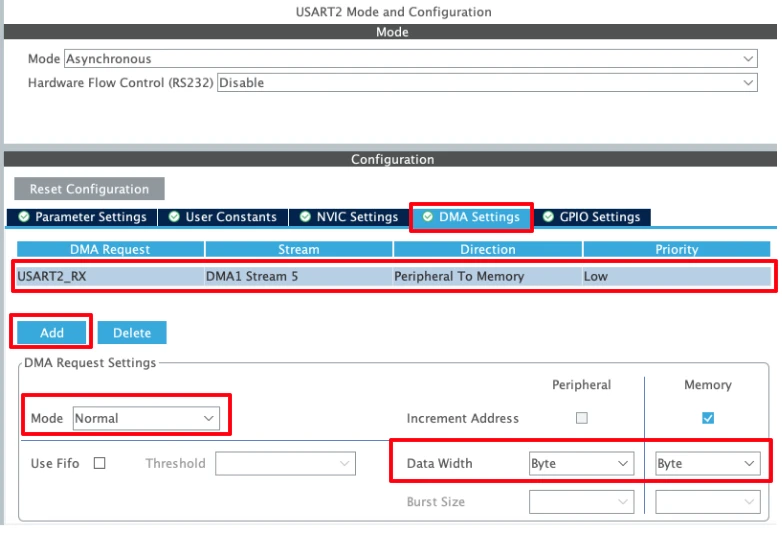

The image below shows the USART2_RX DMA enabled for Nucleo-F446RE.

Image shows how to configure UART_RX DMA for STM32.

Click Add to add the DMA request and select USART_RX to enable the DMA in RX mode.

1. DMA Request selection

The DMA Request is set to USART2_RX, which means this DMA stream will be triggered automatically whenever USART2 needs to receive data. This links the DMA controller directly to the USART2 Receive register.

2. DMA Stream and Direction

DMA1 Stream 5 is selected for USART2 RX (as per STM32F4 DMA mapping).
Direction: Peripheral to Memory
This is essential for UART reception, because data flows from the USART data register to a memory buffer (RAM).

3. DMA Mode

In Normal mode, the DMA transfers the specified number of bytes and then stops automatically. Whereas in Circular Mode, the DMA continues to transfer data.

We will test both modes, starting with the Normal Mode first.

4. Increment Address settings

Peripheral increment: Disabled
The USART data register address must remain fixed.
Memory increment: Enabled
This allows the DMA to write consecutive bytes from the receive buffer to the memory.

5. Data Width

Peripheral data width: Byte
Memory data width: Byte
UART receives data one byte at a time, so both widths must be set to Byte. Any mismatch here can lead to corrupted or failed transmissions.

6. Priority

Priority: Low
UART transmission usually does not require high priority. This can be increased if DMA contention exists with other peripherals.

After enabling the DMA request, the DMA interrupt is enable automatically. You can confirm it in the NVIC Tab as shown in the image below.

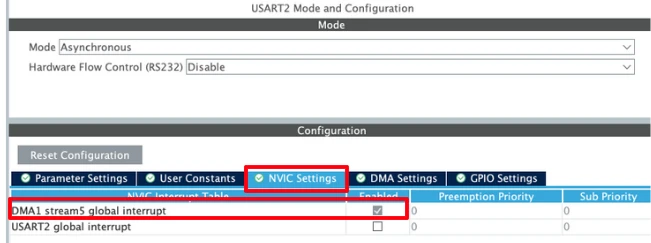

image shows the USART DMA interrupt is enabled by default in the NVIC tab

Enabling USART1 Interrupt for STM32F103C8

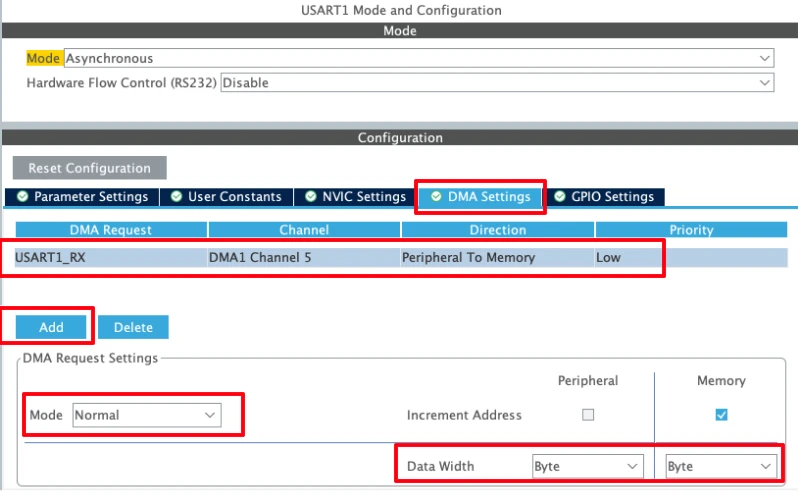

The DMA configuration will remain pretty much the same as we saw in Nucleo-F446. The image below shows the DMA configuration for STM32F103C8.

Click Add to add the DMA request and select USART_RX to enable the DMA in RX mode.

Make sure the Direction is from Peripheral to Memory as the STM32 will receive the data from UART Peripheral.
The DMA Mode can be Normal or Circular. We will test the Normal Mode first and then Circular mode later in this tutorial.
The data width must be set to Byte.

After enabling the DMA request, the DMA interrupt is enable automatically. You can confirm it in the NVIC Tab as shown in the image below.

The configuration remains the same as that of the Nucleo-F446. However, note that in this case the DMA uses channels, whereas the Nucleo board uses streams. This difference arises from the underlying DMA architecture of the MCU family and affects how the DMA is configured and programmed in firmware.

UART RX DMA Normal Mode (LL Drivers)

The DMA Normal mode is ideal when you know exactly how many bytes you expect from the UART. In this mode, the DMA copies a fixed number of bytes from the USART data register to RAM and then stops. The CPU is notified only when the transfer is complete.

This makes it perfect for packet-based protocols, AT command responses, Modbus frames, or any fixed-length UART message.

The flow in Normal mode is:

RX Buffer Setup

First, we define the buffer where DMA will store incoming bytes:

#define RX_BUF_SIZE  10
uint8_t Rx_Buffer[RX_BUF_SIZE];

#define RX_BUF_SIZE  10
uint8_t Rx_Buffer[RX_BUF_SIZE];

Here, the DMA will receive exactly 10 bytes before raising an interrupt. Using a small, fixed-size buffer helps prevent overrun and keeps the system simple.

UART Send Function

We need a function to transmit data back to the PC for debugging. I have already covered in detail: STM32 UART Transmit using LL Drivers. Here’s a minimal blocking implementation:

void uart_send(char *data)
{
    while (*data)
    {
        while (!LL_USART_IsActiveFlag_TXE(USART2));   // Wait until TX buffer is empty
        LL_USART_TransmitData8(USART2, *data++);      // Transmit next byte
    }

    while (!LL_USART_IsActiveFlag_TC(USART2));       // Wait for final transmission to complete
}

void uart_send(char *data)
{
    while (*data)
    {
        while (!LL_USART_IsActiveFlag_TXE(USART2));   // Wait until TX buffer is empty
        LL_USART_TransmitData8(USART2, *data++);      // Transmit next byte
    }

    while (!LL_USART_IsActiveFlag_TC(USART2));       // Wait for final transmission to complete
}

Explanation:

LL_USART_IsActiveFlag_TXE ensures the previous byte has been moved to the shift register.
LL_USART_TransmitData8 writes the next byte to the USART data register.
LL_USART_IsActiveFlag_TC ensures the last byte is fully transmitted before returning.

This is simple, reliable, and perfect for debugging.

Processing the Received Data

Once the DMA finishes transferring the buffer, we need to format and print it:

void ProcessData(uint8_t *buffer, size_t len)
{
    char txBuf[len + 30];
    strcpy(txBuf, "Data Received is: ");
    strncat(txBuf, (char *)buffer, len);
    strcat(txBuf, "\r\n");
    uart_send(txBuf);
}

void ProcessData(uint8_t *buffer, size_t len)
{
    char txBuf[len + 30];
    strcpy(txBuf, "Data Received is: ");
    strncat(txBuf, (char *)buffer, len);
    strcat(txBuf, "\r\n");
    uart_send(txBuf);
}

Explanation:

strcpy and strncat build a readable string from the DMA buffer.
The function does not access the DMA hardware directly; it simply processes the data already in RAM.
Sending via uart_send() is blocking, but safe because Normal mode DMA stops automatically and won’t overwrite the buffer while printing.

I’m prepending the string "Data Received is: " to the data received from the PC. This makes it easy to distinguish between what was sent by the computer and what the STM32 is sending back.

Starting UART RX DMA

This function configures and starts DMA reception:

void UART_DMA_Start(uint8_t *buffer, size_t len)
{
    LL_DMA_DisableStream(DMA1, LL_DMA_STREAM_5);  // Disable DMA stream first
    while (LL_DMA_IsEnabledStream(DMA1, LL_DMA_STREAM_5));  // Wait until fully disabled

    LL_DMA_SetPeriphAddress(DMA1, LL_DMA_STREAM_5, LL_USART_DMA_GetRegAddr(USART2));  // USART DR
    LL_DMA_SetMemoryAddress(DMA1, LL_DMA_STREAM_5, (uint32_t)buffer);                // RAM buffer
    LL_DMA_SetDataLength(DMA1, LL_DMA_STREAM_5, len);                                 // Number of bytes

    LL_USART_EnableDMAReq_RX(USART2);  // Connect USART RXNE to DMA request

    LL_DMA_EnableIT_TC(DMA1, LL_DMA_STREAM_5);  // Enable Transfer Complete interrupt
    LL_DMA_EnableStream(DMA1, LL_DMA_STREAM_5); // Enable the DMA stream
}

void UART_DMA_Start(uint8_t *buffer, size_t len)
{
    LL_DMA_DisableStream(DMA1, LL_DMA_STREAM_5);  // Disable DMA stream first
    while (LL_DMA_IsEnabledStream(DMA1, LL_DMA_STREAM_5));  // Wait until fully disabled

    LL_DMA_SetPeriphAddress(DMA1, LL_DMA_STREAM_5, LL_USART_DMA_GetRegAddr(USART2));  // USART DR
    LL_DMA_SetMemoryAddress(DMA1, LL_DMA_STREAM_5, (uint32_t)buffer);                // RAM buffer
    LL_DMA_SetDataLength(DMA1, LL_DMA_STREAM_5, len);                                 // Number of bytes

    LL_USART_EnableDMAReq_RX(USART2);  // Connect USART RXNE to DMA request

    LL_DMA_EnableIT_TC(DMA1, LL_DMA_STREAM_5);  // Enable Transfer Complete interrupt
    LL_DMA_EnableStream(DMA1, LL_DMA_STREAM_5); // Enable the DMA stream
}

Explanation:

Disable the DMA stream before changing addresses and lengths, STM32 F4 hardware requires this.
Set peripheral address to USART2->DR, so every RX byte is automatically read by DMA.
Set memory address to the buffer in RAM.
Set data length to the number of bytes to receive.
Enable USART DMA request, linking RXNE to the DMA controller.
Enable Transfer Complete interrupt so the CPU knows when the buffer is full.
Enable the DMA stream to start reception.

DMA Transfer Complete Interrupt

The DMA stream raises a Transfer Complete (TC) interrupt when the buffer is filled:

void USART_DMA_IRQHandler(void)
{
    if (LL_DMA_IsActiveFlag_TC5(DMA1))
    {
        LL_DMA_ClearFlag_TC5(DMA1);                  // Clear the TC flag
        ProcessData(Rx_Buffer, RX_BUF_SIZE);        // Process received data
        UART_DMA_Start(Rx_Buffer, RX_BUF_SIZE);     // Restart DMA for next packet
    }
}

void USART_DMA_IRQHandler(void)
{
    if (LL_DMA_IsActiveFlag_TC5(DMA1))
    {
        LL_DMA_ClearFlag_TC5(DMA1);                  // Clear the TC flag
        ProcessData(Rx_Buffer, RX_BUF_SIZE);        // Process received data
        UART_DMA_Start(Rx_Buffer, RX_BUF_SIZE);     // Restart DMA for next packet
    }
}

Explanation:

LL_DMA_IsActiveFlag_TC5 checks if the DMA stream finished transferring all bytes.
LL_DMA_ClearFlag_TC5 clears the interrupt so the next TC event can trigger.
ProcessData processes the received bytes safely from RAM.
UART_DMA_Start re-arms DMA for the next packet, keeping the reception continuous.

Starting Reception in Main

In main(), we simply start DMA once:

UART_DMA_Start(Rx_Buffer, RX_BUF_SIZE);

UART_DMA_Start(Rx_Buffer, RX_BUF_SIZE);

After that, all reception is automatic, and the CPU only processes full packets.

Output

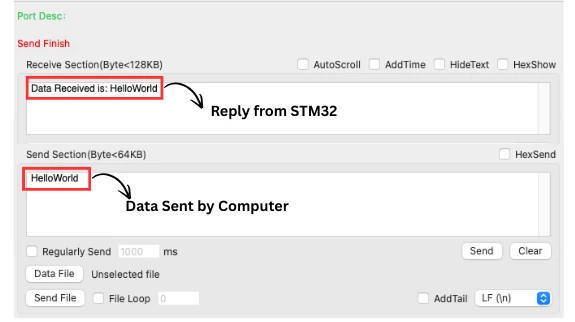

The image below shows the UART terminal printing the received packet after DMA transfer completes.

You can see above, when the PC sends exactly 10 characters “HelloWorld”, the STM32 prints “Data Received is: HelloWorld”.

This confirms that UART RX DMA Normal mode is working correctly with LL drivers.

What changes in STM32F103C8?

As shown in the configuration, the STM32F103C8 relies on DMA channels instead of streams. Hence, the only modification needed is to switch from stream-based DMA handling to channel-based handling.

Below is the UART_DMA_Start() function to configure the DMA1 Channel5 in the STM32F103C8T6. This is the only function where we need to make the changes.

void UART_DMA_Start(uint8_t *buffer, size_t len)
{
    LL_DMA_DisableChannel(DMA1, LL_DMA_CHANNEL_5);  // Diable DMA
    while (LL_DMA_IsEnabledChannel(DMA1, LL_DMA_CHANNEL_5));


    LL_DMA_SetPeriphAddress(DMA1, LL_DMA_CHANNEL_5, LL_USART_DMA_GetRegAddr(USART1));  // Set peripheral Data Register address
    LL_DMA_SetMemoryAddress(DMA1, LL_DMA_CHANNEL_5, (uint32_t)buffer);  // Set Memory address as the buffer
    LL_DMA_SetDataLength(DMA1, LL_DMA_CHANNEL_5, len);  // Set data length

    LL_USART_EnableDMAReq_RX(USART1);  // Enable USART RX via DMA

    LL_DMA_EnableIT_TC(DMA1, LL_DMA_CHANNEL_5);   // Enable Transfer Complete Interrupt
    LL_DMA_EnableChannel(DMA1, LL_DMA_CHANNEL_5);  // Enable DMA
}

void UART_DMA_Start(uint8_t *buffer, size_t len)
{
    LL_DMA_DisableChannel(DMA1, LL_DMA_CHANNEL_5);  // Diable DMA
    while (LL_DMA_IsEnabledChannel(DMA1, LL_DMA_CHANNEL_5));


    LL_DMA_SetPeriphAddress(DMA1, LL_DMA_CHANNEL_5, LL_USART_DMA_GetRegAddr(USART1));  // Set peripheral Data Register address
    LL_DMA_SetMemoryAddress(DMA1, LL_DMA_CHANNEL_5, (uint32_t)buffer);  // Set Memory address as the buffer
    LL_DMA_SetDataLength(DMA1, LL_DMA_CHANNEL_5, len);  // Set data length

    LL_USART_EnableDMAReq_RX(USART1);  // Enable USART RX via DMA

    LL_DMA_EnableIT_TC(DMA1, LL_DMA_CHANNEL_5);   // Enable Transfer Complete Interrupt
    LL_DMA_EnableChannel(DMA1, LL_DMA_CHANNEL_5);  // Enable DMA
}

Apart from changing LL_DMA_STREAM_5 to LL_DMA_CHANNEL_5, there is essentially no other modification required. Also note that the functions LL_DMA_EnableChannel() and LL_DMA_DisableChannel() are used instead of their stream-based counterparts.

Note: I have attached the F103C8 project in the Final project file. You can download the projects for both F446 and F103 from the link at the bottom of this post.

UART RX DMA Circular Mode (LL Drivers)

The DMA Circular mode is used when data arrives continuously and the total length is unknown. Instead of stopping after a fixed number of bytes, the DMA keeps filling the buffer in a loop, automatically restarting from the beginning when the end is reached.

This is ideal for:

Continuous serial logs
Streaming GPS data
Serial consoles
Any high-speed, indefinite-length UART stream

In Circular mode, the CPU never handles individual bytes in real time. Instead, it processes data from a software buffer at its own pace.

Why Circular Mode is Needed

In high-speed or continuous data streams, Normal mode is insufficient because:

Normal mode stops when the buffer is full
CPU must restart DMA each time
Fast streams can overflow the buffer before CPU can react

Circular mode solves this:

The hardware automatically wraps around the DMA buffer, so no data is lost, and the CPU can process it in blocks or character-by-character.

CubeMX Settings for Circular Mode

I have already explained the UART configuration in the STM32CubeMX Configuration above. The only change we need to make is: configure the DMA in Circular Mode.

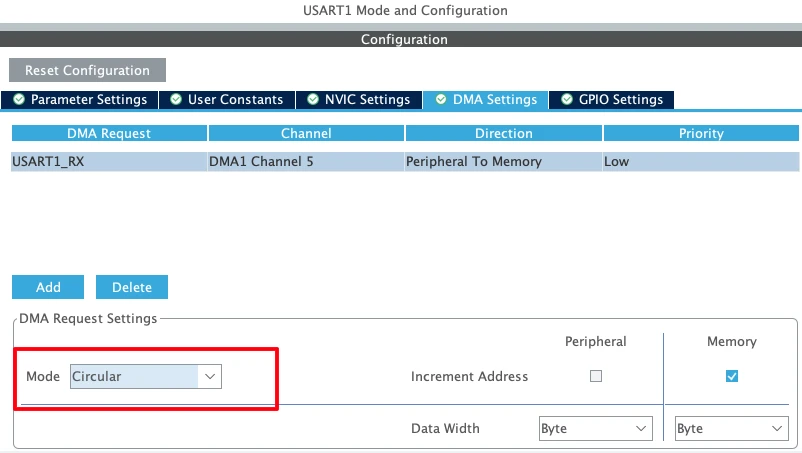

Image shows the configuration of UART DMA in circular mode inside the STM32CubeMX.

Other then configuring the DMA in circular mode, the rest of the configuration will remain the same as the Normal Mode.

Circular RX Buffer

We configure a small DMA hardware buffer and a larger software buffer:

#define RX_BUF_SIZE 10
uint8_t Rx_Buffer[RX_BUF_SIZE];

#define SW_BUF_SIZE 64
uint8_t swBuf[SW_BUF_SIZE];
volatile uint16_t swHead = 0;
static uint16_t lastPos = 0;

#define RX_BUF_SIZE 10
uint8_t Rx_Buffer[RX_BUF_SIZE];

#define SW_BUF_SIZE 64
uint8_t swBuf[SW_BUF_SIZE];
volatile uint16_t swHead = 0;
static uint16_t lastPos = 0;

Rx_Buffer is the DMA hardware buffer (small, fast)
swBuf is a software circular buffer where CPU processes data
swHead points to the next free location in software buffer
lastPos tracks the last processed byte

This separation allows safe processing without blocking the DMA.

Half Transfer and Full Transfer Interrupts

Circular mode allows DMA to trigger two interrupts:

Half-Transfer (HT) → when the first half of Rx_Buffer is filled
Transfer Complete (TC) → when the second half of Rx_Buffer is filled

ISR example:

void USART_DMA_IRQHandler(void)
{
    if (LL_DMA_IsActiveFlag_HT5(DMA1))
    {
        LL_DMA_ClearFlag_HT5(DMA1);
        CopyToSoftwareBuffer(&Rx_Buffer[0], RX_BUF_SIZE/2);
    }

    if (LL_DMA_IsActiveFlag_TC5(DMA1))
    {
        LL_DMA_ClearFlag_TC5(DMA1);
        CopyToSoftwareBuffer(&Rx_Buffer[RX_BUF_SIZE/2], RX_BUF_SIZE/2);
    }
}

void USART_DMA_IRQHandler(void)
{
    if (LL_DMA_IsActiveFlag_HT5(DMA1))
    {
        LL_DMA_ClearFlag_HT5(DMA1);
        CopyToSoftwareBuffer(&Rx_Buffer[0], RX_BUF_SIZE/2);
    }

    if (LL_DMA_IsActiveFlag_TC5(DMA1))
    {
        LL_DMA_ClearFlag_TC5(DMA1);
        CopyToSoftwareBuffer(&Rx_Buffer[RX_BUF_SIZE/2], RX_BUF_SIZE/2);
    }
}

Explanation:

Each half of the DMA buffer is processed immediately after it is filled
CopyToSoftwareBuffer() moves data into the software buffer safely
DMA continues running in circular mode, therefore, no need to restart it

Safe Data Processing

CPU can process characters from the software buffer at any time:

while (lastPos != swHead)
{
    char c = swBuf[lastPos++];
    if (lastPos >= SW_BUF_SIZE) lastPos = 0;

    ProcessChar(c);
}

while (lastPos != swHead)
{
    char c = swBuf[lastPos++];
    if (lastPos >= SW_BUF_SIZE) lastPos = 0;

    ProcessChar(c);
}

Explanation:

lastPos keeps track of processed bytes
swHead tracks new data added by DMA
Processing is non-blocking, so DMA never overwrites unprocessed data

Supporting Functions

As an example of processing the data, we will write the function ProcessChar() to Transmit one character back to PC:

void ProcessChar(char c)
{
    while (!LL_USART_IsActiveFlag_TXE(USART2));
    LL_USART_TransmitData8(USART2, c);

    while (!LL_USART_IsActiveFlag_TC(USART2));
}

void ProcessChar(char c)
{
    while (!LL_USART_IsActiveFlag_TXE(USART2));
    LL_USART_TransmitData8(USART2, c);

    while (!LL_USART_IsActiveFlag_TC(USART2));
}

CopyToSoftwareBuffer() function used above, Moves DMA data into software buffer safely:

void CopyToSoftwareBuffer(uint8_t *data, uint16_t len)
{
    for (uint16_t i=0; i<len; i++)
    {
        swBuf[swHead++] = data[i];
        if (swHead >= SW_BUF_SIZE)
            swHead = 0;
    }
}

void CopyToSoftwareBuffer(uint8_t *data, uint16_t len)
{
    for (uint16_t i=0; i<len; i++)
    {
        swBuf[swHead++] = data[i];
        if (swHead >= SW_BUF_SIZE)
            swHead = 0;
    }
}

The function UART_DMA_Start() Configures and starts circular DMA:

void UART_DMA_Start(uint8_t *buffer, size_t len)
{
    LL_DMA_DisableStream(DMA1, LL_DMA_STREAM_5);
    while (LL_DMA_IsEnabledStream(DMA1, LL_DMA_STREAM_5));

    LL_DMA_SetPeriphAddress(DMA1, LL_DMA_STREAM_5, LL_USART_DMA_GetRegAddr(USART2));
    LL_DMA_SetMemoryAddress(DMA1, LL_DMA_STREAM_5, (uint32_t)buffer);
    LL_DMA_SetDataLength(DMA1, LL_DMA_STREAM_5, len);

    LL_USART_EnableDMAReq_RX(USART2);

    LL_DMA_EnableIT_HT(DMA1, LL_DMA_STREAM_5);
    LL_DMA_EnableIT_TC(DMA1, LL_DMA_STREAM_5);
    LL_DMA_EnableStream(DMA1, LL_DMA_STREAM_5);
}

void UART_DMA_Start(uint8_t *buffer, size_t len)
{
    LL_DMA_DisableStream(DMA1, LL_DMA_STREAM_5);
    while (LL_DMA_IsEnabledStream(DMA1, LL_DMA_STREAM_5));

    LL_DMA_SetPeriphAddress(DMA1, LL_DMA_STREAM_5, LL_USART_DMA_GetRegAddr(USART2));
    LL_DMA_SetMemoryAddress(DMA1, LL_DMA_STREAM_5, (uint32_t)buffer);
    LL_DMA_SetDataLength(DMA1, LL_DMA_STREAM_5, len);

    LL_USART_EnableDMAReq_RX(USART2);

    LL_DMA_EnableIT_HT(DMA1, LL_DMA_STREAM_5);
    LL_DMA_EnableIT_TC(DMA1, LL_DMA_STREAM_5);
    LL_DMA_EnableStream(DMA1, LL_DMA_STREAM_5);
}

The function is very similar to how we used it in the Normal Mode. The only addition is LL_DMA_EnableIT_HT() to enable the Half-Transfer complete Interrupt.

Explanation:

DMA fills Rx_Buffer continuously in circular mode
HT and TC interrupts allow safe CPU processing of each half
The CPU never blocks the DMA, hence it is ideal for high-speed UART streams

Starting Reception

UART_DMA_Start(Rx_Buffer, RX_BUF_SIZE);  // Arm DMA

UART_DMA_Start(Rx_Buffer, RX_BUF_SIZE);  // Arm DMA

From this point, DMA runs automatically. The CPU processes characters from the software buffer inside the main loop.

Output

The image below shows STM32 continuously receiving characters from PC and echoing them back in real-time.

Image shows the data received by the STM32 via UART DMA Circular mode, is transmitted back to the serial terminal.

You can see above, when the PC sends “HelloWorld12345”, the STM32 received it and transmit all the charcaters back to the serial console.

Even if data keeps coming indefinitely, DMA handles it automatically
The CPU only reads characters from the software buffer
No bytes are lost, thanks to circular DMA + software buffer

Preventing Data Loss in DMA Mode

DMA is powerful because it offloads the CPU, but data loss can occur if the system is not designed carefully. This section covers best practices to prevent lost bytes when using STM32 UART DMA.

Why DMA Buffers Get Overwritten

DMA works directly between the peripheral (USART) and a memory buffer. In Normal mode, DMA stops when the buffer is full. In Circular mode, it automatically wraps around.

Problems arise when:

The CPU does not process the buffer fast enough
Circular buffer wraps and overwrites unprocessed data
The buffer size is too small for the data rate

Example:
If Rx_Buffer is 10 bytes and the UART sends 20 bytes before the CPU processes the first 10, the second half overwrites the first, causing data loss.

Why Not to Process Data Inside the ISR

It is tempting to process data inside Half-Transfer (HT) or Transfer Complete (TC) interrupts, but this can be dangerous:

ISR execution blocks other interrupts
Long processing can delay DMA handling
High baud rates may cause buffer overruns

Best practice:

Keep the ISR short. Only copy DMA data to a software buffer
Do the actual processing in the main loop or a background task

Software FIFO Concept

To safely handle continuous or fast UART streams, use a software circular buffer (FIFO):

DMA writes into a hardware buffer (Rx_Buffer)
ISR copies data into a larger software buffer (swBuf)
CPU reads from the software buffer at its own pace

Benefits:

Prevents lost bytes even if CPU is busy
Allows continuous streaming in Circular mode
Easy to implement with simple head/tail pointers

Example diagram of the flow:

Explanation:

DMA Normal → Rx_Buffer → CPU via TC interrupt: Shows packet-based DMA flow.
DMA Circular → Rx_Buffer → Software FIFO → CPU: Shows continuous streaming with safe software buffer.
HT / TC interrupts: Short ISR copies data from hardware buffer to software FIFO.
CPU Processing: Reads from software FIFO at its own pace, hence no bytes lost.

This is the architecture we used in the Circular Mode example. It ensures safe, lossless reception, even at high UART speeds.

Conclusion

In this tutorial, we explored STM32 UART RX using DMA with LL drivers in both Normal and Circular modes. We covered how to configure DMA in CubeMX, how to set up hardware and software buffers, and how to safely handle incoming data using Half-Transfer and Transfer Complete interrupts. We also explained the difference between Normal and Circular mode, and how to use a software FIFO to prevent data loss in high-speed or continuous UART streams.

By following these techniques, you can offload the CPU from byte-by-byte UART handling, ensuring reliable and efficient data reception even at high baud rates. Whether you’re receiving fixed-length packets or continuous streams, using DMA with proper buffer management makes your STM32 applications more robust, responsive, and capable of handling demanding serial communication tasks.

Browse More STM32 LL Tutorials

STM32 LL Tutorial for Beginners: Learn LED Blinking With CubeMX and Low-Layer Drivers

STM32 LL GPIO Input and EXTI Interrupt Tutorial: Read Buttons With Low-Level Drivers

STM32 UART using LL Drivers (Part 1): Transmit using Polling Mode

STM32 UART using LL Drivers (Part 2): Transmit using Interrupt & DMA

STM32 UART Receive Data in Blocking Mode using LL Drivers

STM32 UART using LL Drivers (Part 3): Receive Data in Blocking Mode

STM32 UART using LL Drivers (Part 4): Receive Data in Interrupt Mode

STM32 ADC Using LL Drivers (Part 1): Single Channel Blocking and Interrupt Mode

STM32 LL UART Project Download

DOWNLOAD SECTION

Info

You can help with the development by DONATING Below.
To download the project, click the DOWNLOAD button.

DONATE HERE

DOWNLOAD PROJECT

STM32 LL UART RX DMA FAQs

Can I use DMA for both TX and RX at the same time?

Yes, STM32 allows separate DMA streams for TX and RX. You can transmit and receive simultaneously without CPU intervention, as long as you configure separate streams and interrupts.

What happens if the software buffer overflows?

If your software FIFO is too small and the CPU can’t process data fast enough, new DMA data will overwrite old unprocessed bytes. Increasing buffer size or optimizing CPU processing prevents this.

Can I use DMA with variable-length packets?

Yes, Circular mode is ideal for unknown-length streams. You can detect end-of-packet using special characters (like \n) in your software buffer rather than relying on fixed buffer length.

Do Half-Transfer interrupts matter in Normal mode?

Not really — Half-Transfer interrupts are primarily useful in Circular mode for continuous streams. In Normal mode, DMA stops once the buffer is full, so only Transfer Complete is needed.

Is DMA compatible with other peripherals?

Absolutely. STM32 DMA can handle SPI, I2C, ADC, and more. The principles are the same: configure peripheral and memory addresses, enable DMA request, and optionally use interrupts for safe processing.

STM32 UART Receive Using DMA (Normal and Circular Mode) with LL Drivers

STM32 UART DMA Receive Overview

What is UART DMA?

Why DMA is Better than RX Interrupt

Difference Between Normal and Circular Mode

STM32 UART RX DMA Hardware Flow

How USART Triggers DMA

How DMA Moves Data to RAM

What Happens Without CPU Involvement

UART DMA Setup in STM32CubeMX (LL Drivers)

Enabling USART2 DMA for Nucleo-F446

1. DMA Request selection

2. DMA Stream and Direction

3. DMA Mode

4. Increment Address settings

5. Data Width

6. Priority

Enabling USART1 Interrupt for STM32F103C8

UART RX DMA Normal Mode (LL Drivers)

RX Buffer Setup

UART Send Function

Processing the Received Data

Starting UART RX DMA

DMA Transfer Complete Interrupt

Starting Reception in Main

Output

What changes in STM32F103C8?

UART RX DMA Circular Mode (LL Drivers)

Why Circular Mode is Needed

CubeMX Settings for Circular Mode

Circular RX Buffer

Half Transfer and Full Transfer Interrupts

Safe Data Processing

Supporting Functions

Starting Reception

Output

Preventing Data Loss in DMA Mode

Why DMA Buffers Get Overwritten

Why Not to Process Data Inside the ISR

Software FIFO Concept

Conclusion

Browse More STM32 LL Tutorials

STM32 LL Tutorial for Beginners: Learn LED Blinking With CubeMX and Low-Layer Drivers

STM32 LL GPIO Input and EXTI Interrupt Tutorial: Read Buttons With Low-Level Drivers

STM32 UART using LL Drivers (Part 1): Transmit using Polling Mode

STM32 UART using LL Drivers (Part 2): Transmit using Interrupt & DMA

STM32 UART using LL Drivers (Part 3): Receive Data in Blocking Mode

STM32 UART using LL Drivers (Part 4): Receive Data in Interrupt Mode

STM32 ADC Using LL Drivers (Part 1): Single Channel Blocking and Interrupt Mode

STM32 LL UART Project Download

Info

STM32 LL UART RX DMA FAQs

Search This Site

Subscribe

FOLLOW US
